Spatial Variability of Saturated Hydraulic Conductivity in a Karstic Environmental Protection Area

A Variabilidade Espacial da Condutividade Hidráulica Saturada em Área de Proteção Ambiental Cárstica

Emerson Vinicius Valadares emersonvaladares13@hotmail.com

Universidade Federal de Itajubá, Brasil

José Augusto Costa Gonçalves marina.matos1234@gmail.com

Universidade Federal de Itajubá, Brasil

Marina Souza Matos jaucosta@unifei.edu.br

Centro de Desenvolvimento da Tecnologia Nuclear, Brasil

Peter Marshall Fleming pmf@cdtn.br

Centro de Desenvolvimento da Tecnologia Nuclear, Brasil

Saturated hydraulic conductivity (Ksat), also known as permeability coefficient, is a physical parameter fundamental for the analysis of the intensity at which water flows in soil, being highly relevant in providing essential information on water’s capacity to transport solutes and chemical substances in practically all flow mechanisms (Bagarello, Baiamonte & Caia 2019; Bagarello et al. 2014; Gonçalves & Libardi 2013).

Maximum hydraulic conductivity is reached when the soil is totally saturated, and such parameter is therefore named saturated hydraulic conductivity (Alagna et al. 2016; Di Prima et al. 2019; Keller et al. 2012; Mesquita 2001).

Ksat values can considerably change for the same soil, because of holes made by animals and plant roots. In this sense, it is not always possible to admit that sample data for a certain soil type are normally distributed, being unpractical to represent them by the mode, the mean, or the median (Lozano-Baez et al. 2018; Reynolds et al. 2009; Zhang et al. 2019).

Provided that saturated hydraulic conductivity (Ksat) is known and using mathematical models, the unsaturated hydraulic conductivity (K) can be determined and information on movement of water and solutes in soils can be obtained (Bagarello et al. 2014; Mesquita 2001).

Determinations in the laboratory and in the field reveal a broad dispersion of data, which indicates that this property is highly variable (Cherubin et al. 2016; Mubarak et al. 2010; Pinheiro, Jong van Lier & Simunek 2019).

The investigation of the water dynamics in soils is fundamental to understand infiltration and other water movements in soils in pedological, hydrogeological, and chemical leaching studies (Alagna et al. 2019; Azam et al. 2009).

Saturated hydraulic conductivity is affected by soil attributes, such as structure, texture, homogeneity, soil density, density of particles, total porosity, macro and micro porosities, and any other factor that can influence pore size and configuration. The characterization and better understanding of these attributes is fundamental to any conclusions on the physical processes that take place in the soil (Abbasi et al. 2013; Khaledian, Shabanpour & Alinia 2016; Kreiselmeier et al. 2020; Kumar et al. 2010).

Several researchers have proposed new methodologies and models to determine hydraulic conductivity and how water flows through the soil. However, saturated hydraulic conductivity has been considered constant throughout the study area. This supposition results from convenience and ease and is totally questionable, because Ksat values can vary to the point of being asymmetrically distributed (Gonçalves & Libardi 2013; Mubarak et al. 2010).

The movement of water in the soil is a function of the hydraulic conductivity (K), which is calculated from the saturated hydraulic conductivity, implying the necessity of the precise determination of Ksat values (Mesquita 2001).

From Ksat, it is possible to model water flow in soils and it is applicable to projects focusing on irrigation, drainage, percolation of chemical substances, and the recovery of degraded areas (Leij et al. 2004; Price, Jackson & Parker 2010).

In the study area, which is an environmental protection area as a consequence of its karst relief, the dependence on groundwater is high, not only for urban water supply, but also irrigation, animal watering, and local industry.

Considering the importance to know the saturated hydraulic conductivity behavior in soils, the objective of this study is to statistically assess soil permeability and to know the probabilistic distribution of Ksat values for a better representation of the saturated hydraulic conductivity in an environmentally vulnerable, karstic geological context.

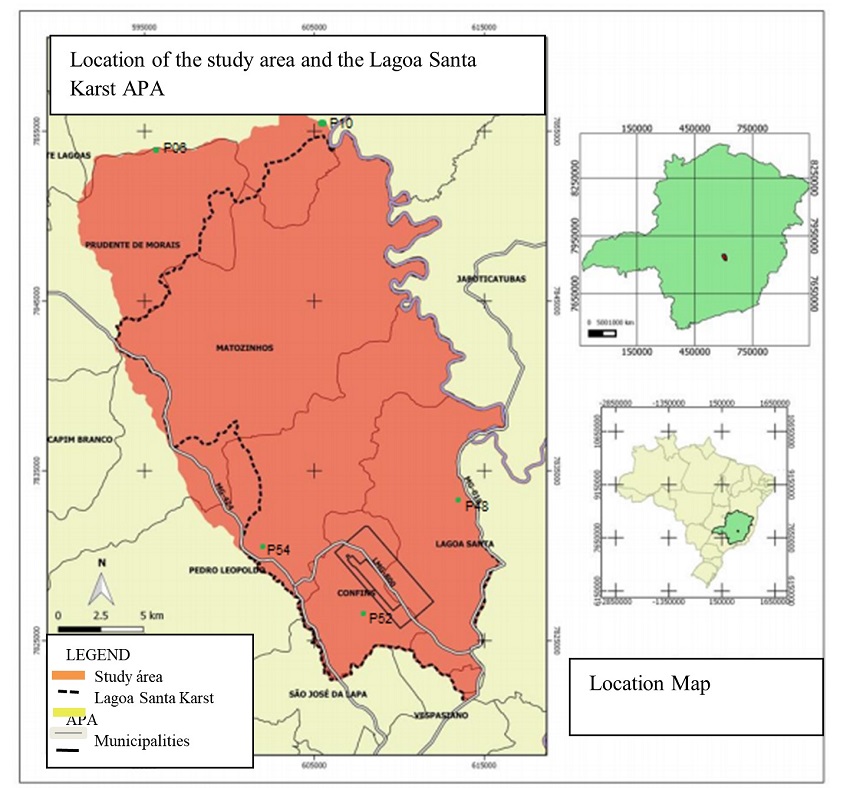

Figure 1 is a simplified geological map of the study area, known as the Lagoa Santa Karst Environmental Protection Area (Lagoa Santa APA).

Figure 1
Map of the study area and location of soil sampling points (modified from Vieira 2018).

The codes signaled in Figure 1 correspond to soil sampling points. Table 1 lists these points, together with corresponding soil types and lithostratigraphic units.

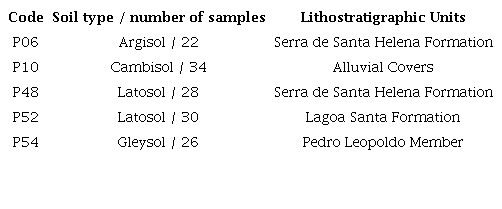

Table 1
Pedo-geological characteristics of the sampled points.

In order check the variability in the Ksat normal distribution along two horizons, 20 (superficial - depths from 0-5 cm to 20 cm) and six (subsuperficial - depths from 20 to 40 cm) were collected at sampling point P54. Sample collecting and preparation procedures were as follows:

1) The 26 Gleysol samples were collected at depths from 0-5 to 20 cm by inserting a metallic cylinder in the soil; 2) Sample saturation in the laboratory, using a 0.005 M deaerated solution of calcium sulfate (CaSO₄) saturated with thymol (C₁₀H₁₄O). The samples were kept soaking for seven days (Figure 2A), until the beginning of the essays. A constant-head permeameter was used to determine the permeability of the soil samples (Figure 2B). The difference in volume measured with a burette is the volume of solution drained through the sample in a chosen time interval. The same laboratorial procedure was applied to the 114 Argisol, Cambisol and Latosol samples.

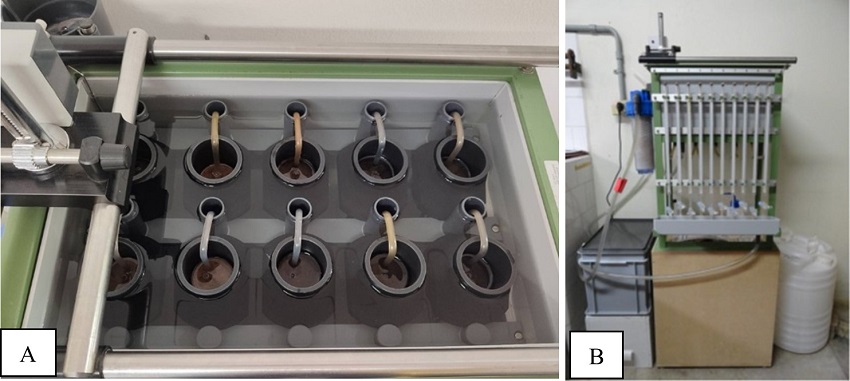

Figure 2
View of A. sample preparation; B. the constant-head permeameter.

The permeability values obtained for the 140 soil samples were adjusted to 20 °C, and were the result of the ratio between the viscosity of the solution used in the laboratory and the viscosity of the water at 20 °C.

Ksat of each soil sample (at 20 ^oC) was determined using Darcy Law - Equation 1:

For the probability distribution analysis, the normal distribution was assumed. The normal distribution, also known as normal or Gauss curve, is a function of two parameters: mean and standard deviation (Walpole et al. 2009) - Equation 2:

Where:

π = 3,14…;

e = 2,71...;

σ = standard deviation.

The mean and standard deviation were calculated via Equations 3 and 4:

Where:

x_i = sample values;

n = number of elements in the sample;

x_m = mean value.

The log-normal distribution was used to describe soil properties that are positively asymmetric. Positively asymmetric distributions are a consequence of the fact that many environmental variables cannot assume negative values, thus starting from zero (Parkin & Robinson 1993). It can also be applied in situations where the log-natural transformation generates a normal distribution, that is, variable X (continuous) will have a log-normal distribution when Y = ln (X) (Walpole et al. 2009).

The Shapiro and Wilk test (1965) was applied to check whether the distribution of the samples is normal. Two hypotheses must be formulated for the test to be performed: in H₀, the sample comes from a normal distribution; in H₁ the sample does not come from a normal distribution. Then, the significance level is determined (it can vary from 0 to 1) and the test statistic (W - Equation 5) is calculated. By means of an interpolation or with the aid of a software, it is checked whether p (probability obtained by interpolation) is greater than the significance level defined initially; if yes, the null hypothesis is accepted (Shapiro & Wilk, 1965).

b can be calculated by: ${\sum }_{i=1}^{n/2}{a}_{n-i+1}\mathrm{ }.(x_{n-i+1}-\mathrm{ }{x}_{\left(i\right)})\mathrm{ }$ if n is even; ${\sum }_{i=1}^{(n+1)/2}{a}_{n-i+1}\mathrm{ }.(x_{n-i+1}-\mathrm{ }{x}_{\left(i\right)})\mathrm{ }$ if n is odd.

For the statistical analyses, software R version 4.0.4 was used. The first step was to insert the Ksat data in the program, attributing a variable for the record of column Ksat.

The Shapiro-Wilk test was applied for each soil class. Then, for soil classes that were normally distributed, graphs of the Boxplot type were drawn, in order to compare sample quartiles with those of the normal distribution. For the samples that were not normally distributed, the natural logarithm was applied to each Ksat value. Boxplot graphs were used in the study of the variability of the measurements.

In Table 2 can see a summary of the results of the Ksat data exploratory analysis.

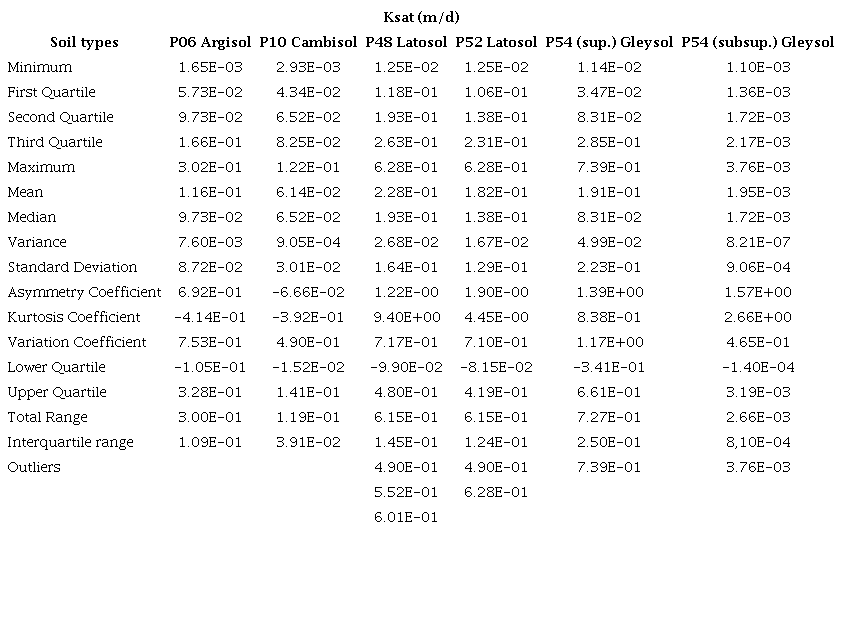

Table 2
Summary of the results of the statistical analysis of the saturated hydraulic conductivity (Ksat) data for each soil type.

The high differences between mean and median values, interquartile range, total range, standard deviation, variation coefficient, kurtosis coefficient, and asymmetry coefficient show that the probability distribution of Ksat is not normal, even if the analyses were made with a small number of samples. The total range for the soil groups is approximately three times higher than the interquartile range, which indicates the existence of values very distant among themselves, despite being less frequent. The analysis of quartiles shows that the results are closer to the lowest values, because the upper quartile is much lower than the maximum value and the lower quartile is much higher than the minimum value and 50% of the data fall between these quartiles. The statistical distribution is normal for some groups of soil samples; however, considering all the samples of the study area, the statistical distribution of the data is not normal. Therefore, more appropriate statistical tests are the non-parametric, because they do not depend on the data statistical distribution.

The variability of results can be explained by the fact that Ksat is highly influenced by chemical and specially physical aspects of the soil, such as aggregation, macro- and micro-porosity, texture, morpho-structures, spatial variations in depth and in the horizontal direction (Castellini et al. 2019; Fernández-Gálvez et al. 2019; Guellouz et al. 2020; Hosseini, Ganijan & Pisheh 2011; Mesquita 2001; Zhou, Gomez-Hernandez & Li 2014). Several studies show the variation range of the Ksat data, independently of the methodology adopted for the measurements, the geographic location, soil use and occupation, and soil type (Baiamonte et al. 2017; Papanicolaou et al. 2015). Picciafuoco et al. (2019) showed that ample Ksat variations can result from many soil characteristics and not exclusively soil structure. For soils plowed for agriculture, minimum and maximum Ksat values were more than 50% greater than those obtained for soils used for pasture (Picciafuoco et al. 2019). According to Viola et al. (2013), soils from native forests yield in average Ksat circa 1.8 and 2.1 times greater than the values obtained for soils of soils of annual cultures and pastures, respectively.

As stated before, two hypotheses were formulated for the soil types: H₀: the sample comes from a normal distribution; H₁: the sample does not come from a normal distribution. Applying the Shapiro-Wilk test to a significance level of 5%, W values were obtained as shown in Table 3.

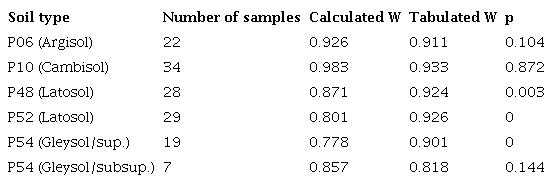

Table 3
Results from the Shapiro-Wilk Test.

It is possible to accept hypothesis H₀ only for (subsuperficial) soils P06, P10 and P54. This is explained by the fact that in these cases calculated p was greater than 5%. Figures 3, 4, 5, 6, 7, and 8 show the graphs for normal distribution fits and the variability of the measurements.

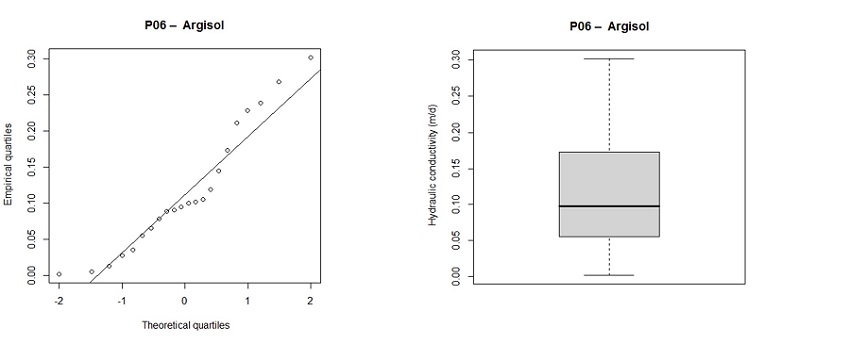

Figure 3
Normal probability plots and Boxplot for variable Ksat.

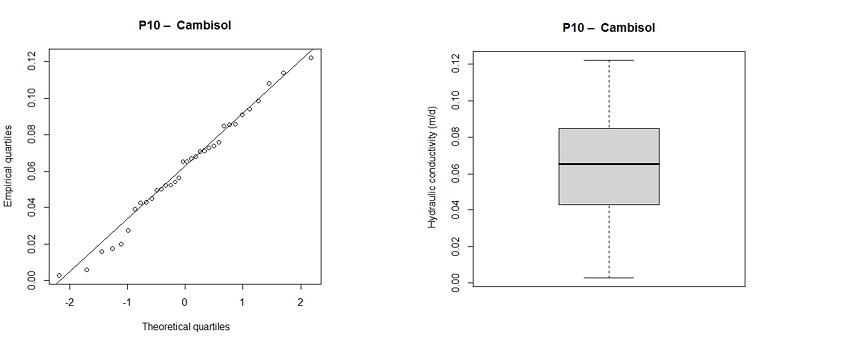

Figure 4
Normal probability plots and Boxplot for variable Ksat.

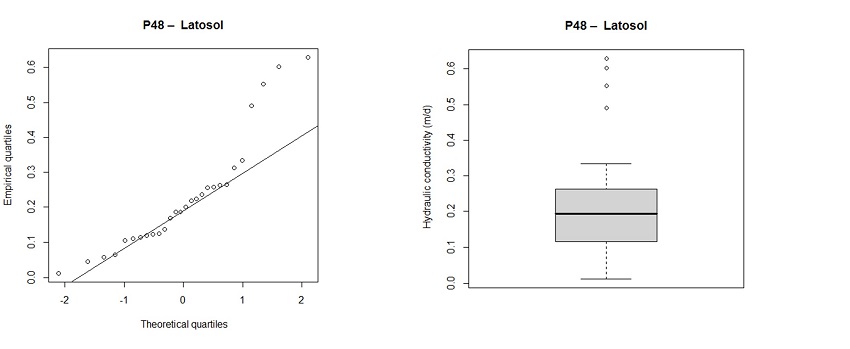

Figure 5
Normal probability plots and Boxplot for variable Ksat.

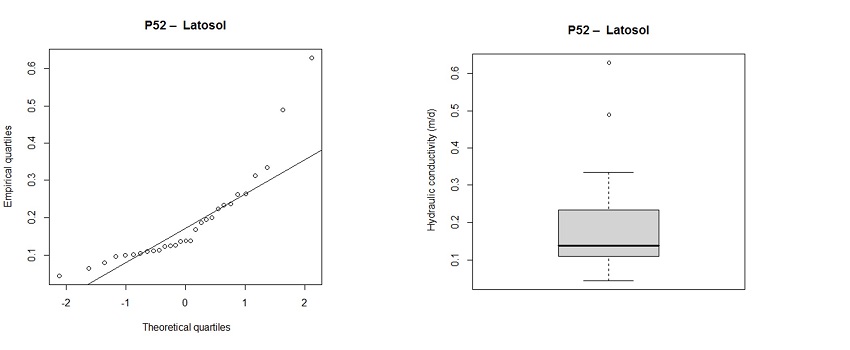

Figure 6
Normal probability plots and Boxplot for variable Ksat.

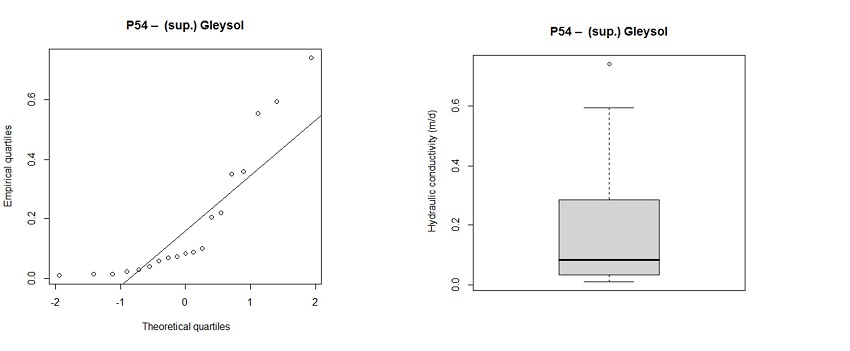

Figure 7
Normal probability plots and Boxplot for variable Ksat.

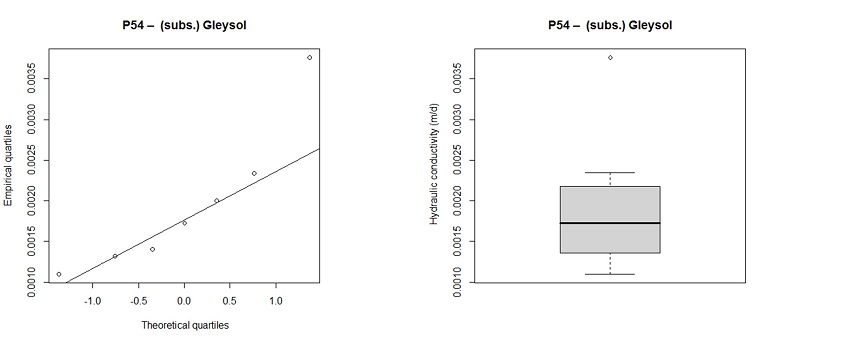

Figure 8
Normal probability plots and Boxplot for variable Ksat.

The Boxplot graphs show the concentration and trend of the results close to the lowest values, because the rectangle limited by the upper and lower quartiles is located closed to the minimum value, highlighting the asymmetry and therefore differing from what would be a normal distribution.

In Figures 3, 4 and 5, the confidence intervals for the medians overlap, indicating that the differences are not statistically significant.

It is observed in Figures 7 and 8 an amount of anomalous values for samples collected at depths up to 20 cm. This can be explained by the higher density of roots and biotic activity closer to the surface, resulting in a higher quantity of macropores and fissures, influencing the measurements of Ksat. For samples collected at depths between 20 and 40 cm, the distribution of Ksat values is more homogeneous. According to Cadima, Libardi and Reichardt (1980), soils are more homogeneous in deeper layers, consequently reducing the spatial variability, making it possible to obtain representative mean values from a normal distribution.

The graphs relative to samples P06, P10, and P54 show that Ksat values fall on a straight line (Henry’s law), validating the Shapiro-Wilk test. Table 4 presents the statistical parameters for these normally-distributed soil types.

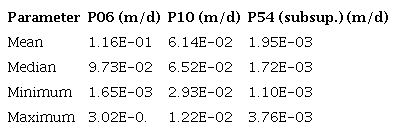

Table 4
Statistical summary for samples P06, P10, and P54.

The Shapiro-Wilk test was applied to the non-normally distributed samples to check whether the distribution is log-normal. The natural logarithm was applied to all Ksat values, resulting in the parameters listed in Table 5.

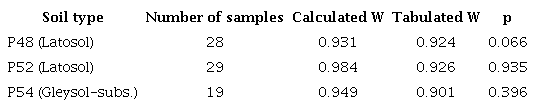

Table 5
Results obtained from the Shapiro-Wilk test for a significance level of 5%.

Considering that p is >5%, the soil samples define a log-normal distribution. Figure 9 shows that the data tend to plot on a straight line, after Ksat values are converted to natural logarithms.

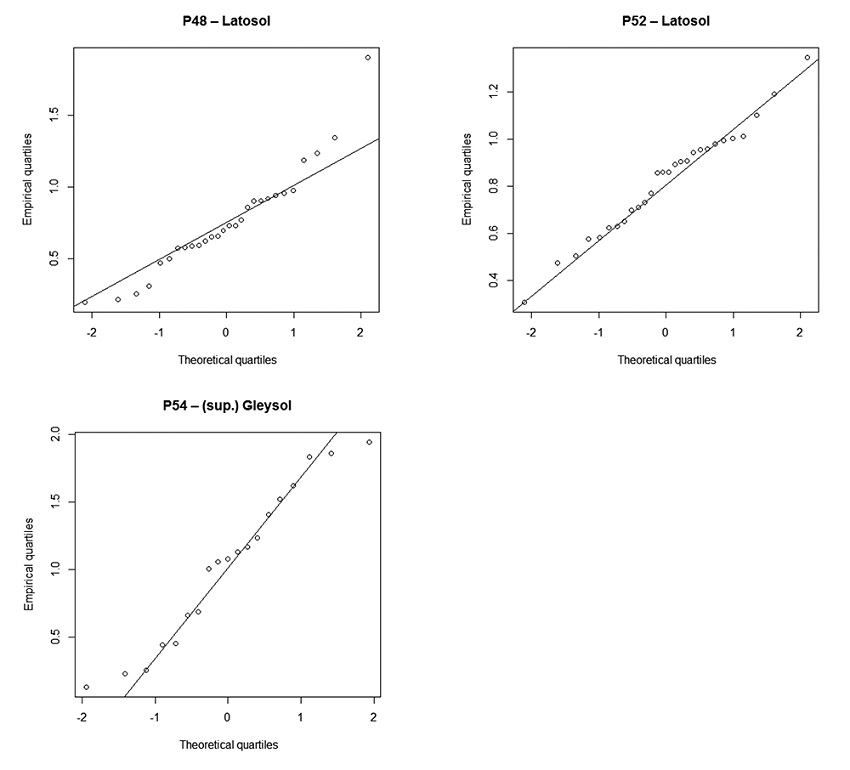

Figure 9
Normal probability plots, after converting Ksat values to natural logarithms.

The probability of occurrence was estimated, assuming a log-normal distribution of Ksat values, as shown in Table 6.

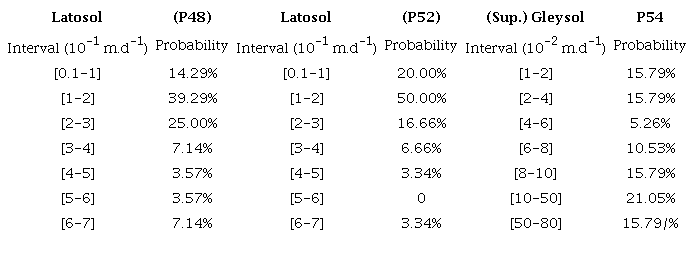

Table 6
Probability of occurrence.

The values listed in Table 6 show that for Latosols samples P48 and P52 there is the probability of 85.72% and 96.55%, respectively, to obtain Ksat values in the interval of 0.1 x 10^-1 m/d and 4 x 10^-1 m/d. For Gleysol samples P54, Ksat values fall in the 1 x 10^-2 m/d to 80 x 10^-2 m/d interval.

Several studies consider Ksat constant, assumed to be the arithmetic mean of a normal distribution of Ksat values. However, Ksat usually differs from the mean, showing that mean values do not always represent the actual permeability of the soil.

Saturated hydraulic conductivity can vary in the same area. Ksat values are not normally distributed, and therefore the mean Ksat value cannot always be considered the best representation of such parameter.

For the application of management techniques or even for a detailed study of aquifer vulnerability, it is suggested that the analysis of the probability of occurrence be performed for non-normally distributed soils. The hypothesis tests made in this study proved to be an important tool for the coherent description of the samples.

A previous statistical analysis showed us that the Ksat frequency distributions are distinct, implying variability and the necessity of a varied number of samples in order to obtain reliable conclusions.

The assessed Ksat values revealed a varied probabilistic distribution, resulting in a ample total range and high variation coefficients, attesting the Ksat spatial variation in the study area.

Researchers and managers should analyze the risks of estimating parameters that dependent on Ksat and values to be adopted for the soil properties, before taking decisions on the management of water resources at a hydrographic basin scale.
