Introduction

The sharp industrial growth, resulting from technological advances, has developed several job opportunities, strengthening the competitiveness of organizations with the need to improve industrial processes that resulted in larger and more complex plants. This fact also increased pollution and industrial accidents that draw the attention of government entities (Moraes, 2010).

In this context, the improvement of the Work Security and Health (WHS) sector results on a reduction of risks of accident, leading to the preservation of health and improving the operating performance of employees. It also, enhances the company's image in the market, designing new growth opportunities (Oliveira, 2010). The growing concern about industrial safety in organizations tends to result in the reduction of labor risks intrinsic to the work environment and the operating procedures of the different activities. Work safety is related to the prevention of accidents and the preservation of workers' health. Therefore, its purpose is prophylactic in order to anticipate risks.

The term “risk” means the probability of a bad outcome, and “risk management” is the set of instruments that the organization uses to plan, operate and manage its activities in exercising the risk control function. Flamotube boilers are the most commonly used in small and medium-sized industries. This type of boiler is easy to operate, so most of the accidents generated are negligent. In addition many hospitals are used of flamotubular boilers because its cost of acquisition and operation is more advantageous to keep in operation the systems of autoclaves, laundry, among others. In view of this, the present article proposes to identify the hazards present in the operating phase of flame tube boilers of the University Hospital of Santa Maria (HUSM) with the use of Failure Mode and Effects Analysis (FMEA) tool. The justification for this work is based on the identification of improvements in controlling the process of HUSM's boiler’s sector, seeking for the safety and physical integrity of employees.

Evolution of Prevention

The prevention of damage for the employees’ work activities emerged and evolved after the First World War, with efforts focused on the study of diseases, environmental conditions, machinery and equipment layout. During this period, studies were developed to improve the understanding of the problem, propose methodologies and assess results. The engineer Helbert William Heinrich describes that there is 1 disabling injury for each 29 minor injuries and 300 accidents without injuries.

Extending these studies, the engineer Eduard Frank Bird Jr. analyzed accidents in 297 companies, which represented a sample of 21 groups of different industries, reporting a ratio of 1 disabling injury for every 10 minor injuries, 30 accidents with property damage and 600 incidents. In 2003, Marine showed that for every death there are at least 300,000 risky behaviors (Freibott, 2014). From this ratio, it is possible to conclude that actions should be directed to the base of the pyramid, not just to events that result in severe or disabling injury.

Risk Management in Boilers

Risk management can be defined as: identification, evaluation and ranking the priority of risks (Cagnin, Oliveira, Simon, Helleno, & Vendramini, 2016). The process of risk management starts primarily with the identification and analysis of risks of accidental losses that threaten the organization. The risk identification is the process by which the accident risk situations are analyzed continuously and systematically (Moraes, 2010). The analysis can be performed by means of technological, economic and social factors. Technological factors are related to the development of more complex processes. The economic factors are related to the increase of industrial plants' scale. The social factors comprehend the proximity of demographic concentration.

According to the Norm NBR ISO 31000: 2009, the term "risk" can be characterized as the effect (positive or negative) of uncertainty on determined objectives. Thus, risk analysis involves identification, recognition, evaluation and gradation of risks followed by controls in order to mitigate the probability of the causes occurrence and risk effects. The risk management process according to ISO 31000 as it is shown in Figure 1.

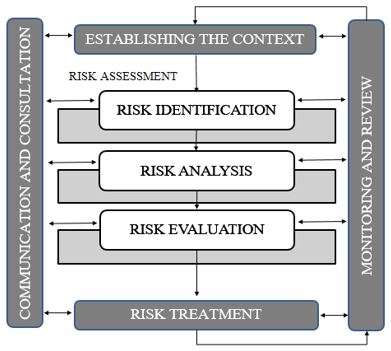

Figure 1
Risk management process
Source: ISO (2009)

Ruppenthal (2013) defines the risk management, in its turn, as a methodology that aims to increase confidence in the ability of an organization to predict, prioritize and overcome obstacles to achieve goals. Thus, comprises efforts in trying to eliminate, reduce, control or yet finance the risks, if economically viable. Therefore, it concerns the management of fault possibilities in order to prevent it from happening.

In this context, risk management is the systematic practice of selecting necessary actions to minimize or avoid the materialization of potential causes that can lead to the occurrence of accidents. Risks cannot be fully avoided, but can be minimized into tolerable levels set by the company or the process under analysis. For risk management, the problematic consists primarily in knowing and analyzing the risks and accidental losses that threaten the organization. This identification is the process by which the accident risk situations are analyzed continuously and systematically (De Cicco & Fantazzini, 2003; Moraes, 2010).

Management of Risk in Boilers

The NR 13 of the Ordinance 3.214/78 of the Ministério do Trabalho e Emprego (MTE), defines boilers as all the equipments that, simultaneously, generate and store water steam or other fluid (Brasil, 2017). The risk of accident of such equipment tends to increase as the material’s allowable stress and wall thickness are reduced. The boilers are classified in the following categories: (i) A: the operating pressure is equal to or bigger than 1960 KPa or 19.98 Kg/cm²; (ii) B: the operating pressure is equal to or less than 588 KPa, or 5.99 Kgf/cm² and the inner volume is equal to or greater than 100 liters; and (iii) Class C: all those that are not included in the categories above. The boilers of category "A" provide the highest risks, while the ones in category "B" represent the lowest risks (Brasil, 2017). As for the type, the boilers can be classified into flame tube and water-tube. The flame tube ones, focused in this study, are characterized by internal circulation of the combustion gases in operation with liquid or gaseous fuels.

Flame tube boilers

The functionality of these boilers is restricted to the production of saturated steam. The work pressures are not high and possess limitations regarding the thickness of the outer wall of the side, once that the greater the thickness, the higher the pressure.

The flame tube boiler operation is characterized as simple, once it has few equipments to monitor the operation. However, this is the factor that favors the occurrence of accidents. According to Mariajayprakash and Sesnthivelan (2013) this type of boiler leads the accident statistics in the world, since it is common the presence of negligence in its operating processes and maintenance. Industrial systems are periodically subject to deterioration in function of its use and life cycle. Thus, the insertion of a maintenance policy becomes essential in organizations to mitigate problems (Dohi et al., 2011). Maintenance can be defined as "actions required to maintain an operating system or restore it to a satisfactory condition for performing their duties"[1] (Dhillon, 2013).

In this context, there are four classifications for maintenance: (i) Corrective Maintenance: is the work done on a faulty machine or equipment in order to repair it (Aguiar, 2012). The Corrective Maintenance can be classified into: (i.i) corrective planned, when the repair is performed at a date after the failure, and (i.ii) corrective of emergency, in which the repair occurs immediately after the fault detection (Branco, 2008); (ii) Preventive Maintenance: it is the work performed to reduce failure or drop in performance according to a planning based on established time periods (Moraes, 2010); (iii) Predictive Maintenance: is the following or monitoring of the degradation conditions of a system (Aguiar, 2012; Branco, 2008); and (iv) Detective Maintenance: is the work done for protection or command systems to detect failures hidden from the employees of operation or maintenance areas (Moraes, 2010).

Failure Mode and Effect Analysis (FMEA)

FMEA represents the most popular approach for assessing the criticality level of the failures of products, processes or even complex systems (Ookalkar, Joshi, & Ookalkar 2009; Sawhney, Subburaman, Sonntag, Rao, Rao, & Capizzi 2010; De Souza & Carpinetti, 2014; Lolli, Gamberini, Rimini, & Pulga 2016). The method FMEA, has its first recorded use concept in 1949, from US military development in order to determine the effect of the occurrence of failure to systems and equipment. This method identify, systematically, potential failures in processes by defining the causes and effects, and from this, define actions to reduce or eliminate the risk associated with these failures (Marriott, Garza-Reyes, Soriano-Meier, & Antony, 2013; Aguiar, Salamon, & Mello 2014).

The authors Estorilio and Posso (2010), defines FMEA as a group of activities aimed at recognizing and evaluating the potential failure of a product/process and its effects. Accordingly, it is a tool that seeks to avoid, through analysis, the potential failures that may occur in the project, identifying actions that may eliminate or reduce the likelihood of a potential failure mode occurring and documenting the analysis process. Therefore FMEA is a reliable technique that aims to: (i) recognize and evaluate potential failures that may arise in a product or process; (ii) identify actions that could eliminate or reduce the chance of occurrence of such failures; and (iii) document the study, creating a technical framework that may assist in reviews and further deve-lopment of the project or process (Devadasan, Muthu, Samson, & Sankaran 2003; Fogliatto & Ribeiro, 2009).

The FMEA is one of the important planning tools to analyze the cause and consequence of failure. During risk identification, risk events are recognized and the contingency plan is formulated by a team of experienced and qualified engineers to identify and classify the failures through risk priority (Lee, Yeung, & Hong, 2012). Its implementation can happen in project or process, this latter being the focus of the present study.

There are three stages that are very critical in the FMEA process to ensure the success of the analysis. The first stage is to determine the potential failure modes. The second stage is to find the data for occurrence, detection, and severity rankings. The third stage is the development of the control process based on the FMEA report (Teng & Ho, 1996; Teng, Ho, Shumar, & Liu 2006; Estorilio and Posso, 2010).

Teng et al. (2006) and Lolli et al. (2016) describe in studies that Process FMEA is analyzed with an orderly approach to formalize and document the reasoning of the team throughout the stages of planning and process improvement, helping to reduce the risk of failures. It evaluates the process requirements concerning the examination of all potential failures.

FMEA involves identifying each process step that may fail, then assigning rankings for occurrence probability, severity, and detectability. The “occurrence ranking” indicates how likely a failure is considered to be, and is related to the process capability indices. The “severity ranking” indicates the potential impact of a failure. The “detectability ranking” indicates howlikely it is that a failure can go undetected until its full impact materializes. The three rankings are then multiplied, and higher total scores indicate higher risk (Wang, Chin, Poon, & Yang, 2009; Kenchakkanavar and Joshi, 2010; Chuang, 2010; Nassimbeni, Sartor, & Dus, 2012; Pan & Chen, 2012). The process FMEA is shown in Figure 2.

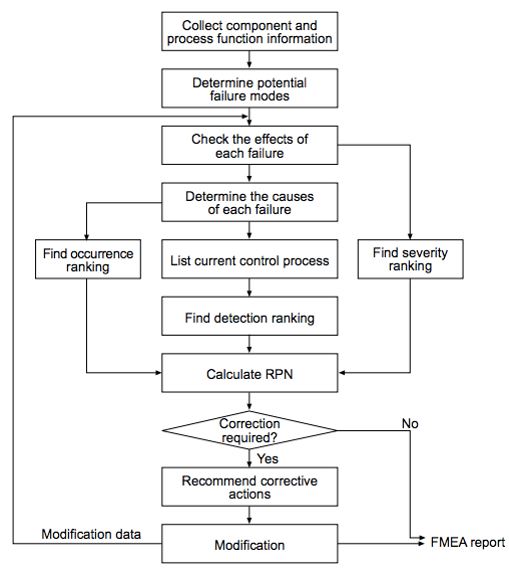

Figure 2
FMEA know-how fluxogram
Source: (Teng & Ho, 1996; Fogliatto & Ribeiro, 2009)

According to Fogliatto and Ribeiro (2009), for FMEA’s monitoring is necessary to understand the technique as a dynamic document that should reflect the latest versions of the process, as well as the latest actions taken, including changes adopted after the production start. FMEA is applied to map the possible failure modes and effects from an item – in this case study, the flame tube boiler. In order to clarify the criteria for determining the indexes of occurrence (O), severity (S) and detection (D), Table I shows the indicators used in the application of FMEA.

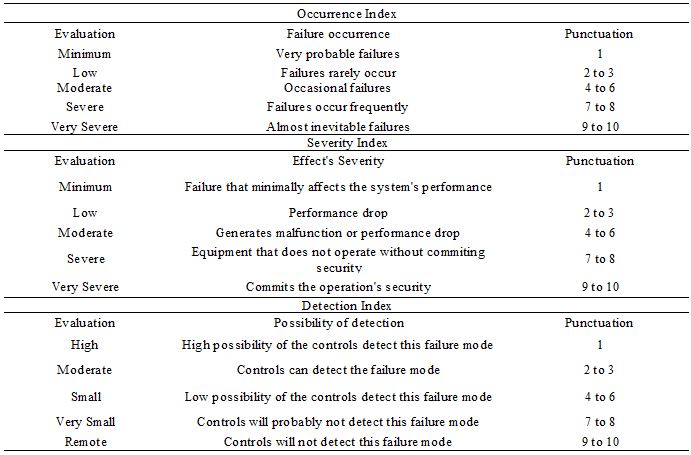

Table I
Indexes of Occurrence (O), Severity (S) e Detection (D)
Source: Adapted (Fogliatto and Ribeiro, 2009)

FMEA uses a Risk Priority Number (RPN), to assess the risk level of a component or process, which is obtained by multiplying three factors: probability/occurrence of the fault (O), severity of the fault (S) and probability of not detecting the failure (D) (Kumru and Kumru, 2013). A Pareto chart is generated based on their risk scores tabulated in descending order. This chart provides guidance for prioritizing risk response planning. The RPN pareto bar chart is plotted and contains values in descending order (Lee et al., 2012).

Methods

The present work is categorized as an applied research. As for its goals, is characterized as an exploratory research. Thus, the method is characterized as a nominal qualitative case study, since the answers can’t be sorted and seek to describe, decode and translate the issue focusing on processes under study. According of Yin (2010), the constructs in case study are considered valid when the researcher uses basic principles, as multiple sources of evidence and a database.

To describe the convergence and evidence of construct validity, an interview was conducted with the work safety engineer at the university hospital. In this interview were presented the plan of operation files of the boilers, the floor plans of the equipment, the hydraulic plant of the steam pipes that feed the hospital. In addition, a direct observation of the operation of the boilers was carried out. The investigation of the operation of the boilers was carried out in the three shifts of operation. After this stage, a meeting was scheduled with the boiler operators and the manager to investigate whether the method of operation used was the same for all Calderistas. As a result of this meeting it was found that each operator had a way of turning the boiler on and off. Thus, the authors, together with the boiler operators, through a brainstorming, have developed a standard procedure for turning the boiler on and off at the hospital. After these steps the FMEA technique of the process can be applied, therefore, it was performed, for the study, the identification of risks’ factors present in the flame tube boiler’s operating phase, focusing on the main risks noticed in workplaces. The application was done in a federal organization of the hospital sector located in Santa Maria, Rio Grande do Sul, Brazil.

The University Hospital of Santa Maria – HUSM was founded in 1970, recognized as a health reference for the central region of Rio Grande do Sul. It is an UFSM's organ that works as a school hospital with attention focused in developing education, research and public health assistance (Husm, 2014). The hospital serves a monthly average of 11,3 thousand specialized consultations, 4,6 thousand emergency consultations and effectuates approximately 760 thousand medical examinations and 10,8 thousand hospitalizations per year. It is the only hospital of the State's central region that fully serves the Sistema Único de Saúde[2] (SUS) (Husm, 2014).

HUSM possess two flame tube boilers, both manufactured in 1971. The boiler in analysis is a horizontal flame tube H-3N model, category B, with production capacity of 3.300kg.v/h, maximum allowable working pressure (MAWP) or permissible (MPWP) of 150 Lbs/pol2 (10,55kgf/cm2) and hydrostatic pressure of 225 Lbs/pol2 (15,82kgf/cm2) with vaporization area up to 100m2.

The boilers sector is responsible for supplying steam to: laundry, autoclaves, kitchen, showers and more. This sector has five boiler operators that alternate with each other in a work schedule scheme that consists of two operators per scale. The shift begins at 6 a.m., and the system shutdown occurs at 10 p.m.

Results

Initially, it was identified a lack of standard procedure to the boiler’s operation once the five operators use different procedures to operate the hospital's flame tube boiler. Accordingly, for apply the methods proposed in the study it was necessary to map the process for the steps to be focused on the boiler's risk study in order to establish an operation pattern. For the creation of these flowcharts it was used the brainstorming technique with the participation of the boiler's operators, the engineer of labor security and the researchers. It was also necessary to set one stage of the operating process to the study application. Therefore, FMEA was taken for the stages of starting up and shutting down the boiler. To give visibility to the failure causes in the boilers' sector it was elaborated a radar chart (Figure 3).

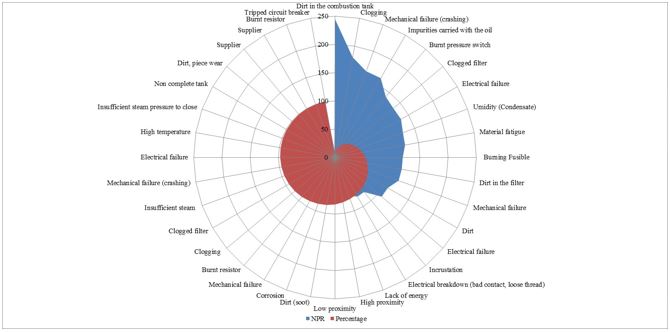

Figure 3
Failure causes in the boiler’s starting up process
Source: Author

From the flowchart and the knowledge of the system operation it was started the application of FMEA (Table II) for the stage of starting up the boiler along with the proposition of the recommended actions for medium and high risks.

In order to apply the techniques in the shutdown of the boiler, the same procedures described in the boilers' starting up process were repeated. It was designed a radar chart of the causes of failures for the boiler's shutdown stage (Figure 3).

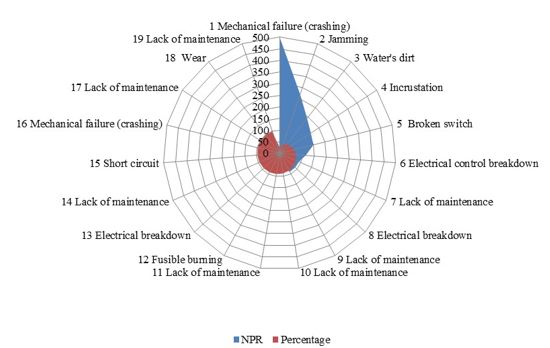

Figure 4
Failure causes in the boiler’s shutdown process
Source: Author

Table III shows the application of FMEA to the stage of shutting down the boiler and the proposition of recommended actions for medium and high risks.

Recommended Actions and Discussion of the results

The application of FMEA in the phase "shutdown of registers in the panel" pointed the highest score among the processes presented for the boiler’s shutdown function. Thus, the following suggestions for improvement and recommendations for corrective/preventive actions were prepared: (i) implementation of a maintenance manual in order to measure the standard procedure to the process of anomalies’ inspection; (ii) professional training through courses of boilers’ operation and study of the procedure manual designed by the boilerman’s team; and (iii) the adoption of instruments for easy identification of possible failures, such as andon or contact sensors for measuring wear.

The application of the technique resulted in the hospital improving its maintenance and safety processes in the operation of the boilers, as a standard operating procedure was inserted in the unit. In addition to the data from this study, the hospital provided a glossary of indicators, that is, the study data indicated that the managers and operators of the unit are the primary control and maintenance items in order to avoid failure and risks in the operation of the boilers. We obtained as a result a dossier with information relevant to the identification of procedures that have higher incidence of risk in flame tube boilers. Finally, the study presents to the other service operators that use this boiler model, a method to introduce the tool to analyze fault modes in processes. That is, this study may serve as a means of introducing the technique in similar units to which the study was applied, with the objective of mitigating the risk of accidents in boilers.

Conclusion

The use of FMEA methodology for the case study of the University Hospital of Santa Maria’s flame tube boiler resulted in the identification of failure modes, effects and causes of the operating process. The application of FMEA aimed to holistically identify the possible faults in the system.

Thus, it was shown in this work, before the application of the methods and through the study of the scientific literature, that the risks are likely to characteristics change in function of the organization performance environment and its operating characteristics. Therefore, the risks emerge from new corporate structures, per lack of equipment maintenance, and per technologies change without previous study of its impacts.

However, it may be concluded by the application that the sector under study has no operating and maintenance default of the boiler which in short results in a high possibility of failure in the system as a whole and catastrophic consequences in case come an explosion. At the same time, it was observed that the use of methods helps in understanding and identifying critical points as well as in proposing corrective measures or mitigation/elimination of faults.

Referências

Aguiar, D. C. (2012). Apostila Metodologias de análise de riscos APP & HAZOP. Rio de Janeiro: Universidade Católica de Goiás – UCG. Retrieved Aug 17, 2018, from http://files.visaosegura.webnode.com/200000056-584dc5947a/APP_e_HAZOP.pdf.

Aguiar, D. C., Salamon, V. A. P., & Mello, C. H. P. (2014). An ISO 9001 based approach for the implementation of process FMEA in the Brazilian automotive industry. International Journal of Quality & Reliability Management, 32(6), 589-602.

Branco, G., & Filho (2008). A organização, o planejamento e o controle da manutenção. Rio de Janeiro: Ciência Moderna.

Brasil. Ministério do Trabalho e Emprego. (2017). NR 13 – caldeiras e vasos sob pressão. brasília: Ministério do Trabalho e Emprego. Retrieved Jun 22, 2017, from http://portal.mte.gov.br/data/files/FF80808147596147014764A4E1D14497/NR13%20(Atualizada%202014)pdf.

Cagnin, F., Oliveira, M. C., Simon, A. T., Helleno, A. L., & Vendramini, M. P. (2016). Proposal of a method for selecting suppliers considering risk management. International Journal of Quality & Reliability Management, 33(4), 488-498

Chuang, P. T. (2010). Incorporating disservice analysis to enhance perceived service quality. Industrial Management & Data Systems, 110(3), 368-91.

De Cicco, F., & Fantazzini, M. L. (2003). Tecnologias consagradas de gestão de riscos: riscos e probabilidades. São Paulo: Risk Tecnologia.

De Souza, R. V. B., & Carpinetti, L. C. R. (2014). A FMEA-based approach to prioritize waste reduction in lean implementation. International Journal of Quality & Reliability Management, 1(4), 346-366.

Devadasan, S. R., Muthu, S., Samson, R. N., & Sankaran, R. A. (2003). Design of total failure mode and effects analysis programmer. International Journal of Quality & Reliability Management, 20(5), 551-568.

Dhillon, B.S. (2013). Maintainability, maintenance and reliability for Engineers. New York: CRC Press.

Dohi, T., Ashioka, A., Osaki, S., & Kaio, K. (2011). Optimizing the repair-time limit replacement schedule with discounting and imperfect repair. Journal of Quality in Maintenance Engineering, 7(1), 71-84.

Estorilio, C., & Posso, R. K. (2010). The reduction of irregularities in the use of process FMEA, International Journal of Quality & Reliability Management, 27(6), 721-733.

Fogliatto, F. S., & Ribeiro, J. L. D. (2009). Confiabilidade e manutenção industrial. Rio de Janeiro: Campus.

Freibott, B. (2014). Sustainable safety management: Incident Management as a Cornerstone for a Successful Safety Culture. Safety and Security Engineering, 134(1), 257-272.

HUSM. O HUSM. (2014). Retrieved Set 10, 2014, from http://www.husm.ufsm.br.

International Organization for Standardization (ISO). (2009). ISO 31000: risk management principles and guidelines. Geneva: ISO Copyright Office.

Kenchakkanavar, V. D., & Joshi, A. K. (2010). Failure mode and effect analysis: a tool to enhance quality in engineering education. International Journal of Engineering, 4(1), 52-9.

Kumru. M., & Kumru. P. Y. (2013). FMEA application to improve purchasing process in a public hospital. Applied soft computing, 13(1), 721-733.

Lee, C. K. M., Yeung, Y. C., & Hong, Z. (2012). An integrated framework for outsourcing risk management. Industrial Management & Data Systems, 112(4), 541-558.

Lolli, F., Gamberini, R., Rimini, B., & Pulga, F. (2016). A revised FMEA with application to a blow moulding process. International Journal of Quality & Reliability Management, 33(7), 900-919.

Mariajayprakash, A., & Sesnthivelan, T. (2013). Failure detection and optimization of sugar mill boiler using FMEA and Taguchi method. Engineering Failure Analysis, 30(1), 17-26.

Marriott, B., Garza-Reyes, J.A., Soriano-Meier, H., & Antony, J. (2013). An integrated methodology to prioritise improvement initiatives in low volume-high integrity product manufacturing organisations. Journal of Manufacturing Technology Management, 24(2), 197-217.

Moraes, G. (2010). Sistemas de gestão de riscos: princípios e diretrizes – ISO 31.000/2009 comentada e ilustrada. Rio de Janeiro: Gerenciamento Verde Consultoria - GVC.

Nassimbeni, G., Sartor, M., & Dus, D. (2012). Security risks in service offshoring and outsourcing, Industrial Management & Data Systems, 112(3), 405-440.

Oliveira, O. J., Oliveira, A. B., & Almeira, R. A. (2010). Gestão da segurança e saúde no trabalho em empresas produtoras de baterias automotivas: um estudo para identificar boas práticas. Produção, 20(3), 481-490.

Ookalkar, A. D., Joshi, A. G., & Ookalkar, D. S. (2009). Quality improvement in hemodialys is process using FMEA. International Journal of Quality & Reliability Management, 26(8), 817-830.

Pan, J., & Chen, S. (2012). A new approach for assessing the correlated risk. Industrial Management & Data Systems, 112(9), 1348-1365.

Ruppenthal, J. E. (2013). Gerenciamento de riscos – Santa Maria: UFSM. Santa Maria: Rede e-Tec Brasil.

Sawhney, R., Subburaman, K., Sonntag, C., Rao, P., Rao, V., & Capizzi, C. (2010). A modified FMEA approach to enhance reliability of lean systems. International Journal of Quality & Reliability Management, 27(7), 832-855.

Teng, S. H., & Ho, S. Y. (1996). Failure mode and effects analysis: an integrated approach for product design and process control. International journal of quality & reliability management, 13(5), 8-26.

Teng, S., Ho, S., Shumar, D., & Liu, P. (2006). Implementing FMEA in a collaborative supply chain environment. International Journal of Quality & Reliability Management, 23(2), 179-196.

Yin, R. K. (2010). Estudo de caso: planejamento e métodos (4a ed.). Porto Alegre: Bookman.

Wang, Y. M., Chin, K. S., Poon, G. K. K., & Yang, J. B. (2009). Risk evaluation in failure mode and effects analysis using fuzzy weighted geometric mean. Expert Systems with Applications, 36(2), 1195-207.
