I. INTRODUCTION

AZOLE ligands have shown a good biological activity, which is potentiated by forming complexes with transition metals [1-2]. They are compounds with intermediate basic character in the model of acid and hard soft bases, which facilitates that, could be unite to metals that are intermediate acids like Cu (II), Ni (II) or Zn (II), consequently these intermediate acid-base pairs form favorable bonds [3]. Imidazole is considered an intermedia base, because is a σ moderate donor and a weak π acceptor, with a σ donor and π acceptor character between that found for saturated amines as ammonia (NH3) and unsaturated amines as pyridine [4], imidazole is located above oxygen based donors and under ammonia and pyridine in the spectrochemical series.

Triazoles are more basic ligands than the respective imidazoles, with a greater p-acceptor interaction and a weak σ-donation (less basic than imidazoles [5]. For azoles, the series in which the basicity-s increases and the acidity-p decreases follows the order: 1,2,4-triazole> pyrazole> thiazole >> imidazole. Consequently, the triazole ligands are better for stabilizing softer metals [6].

Due to ergosterol constitutes a fundamental component of fungal membranes, many antifungal medications have been develop to inhibit the enzymes involved in its production such as 14α demethylase (CYP51). Azole antifungals are potent inhibitors of fungal lanosterol and have been use for eradication of systemic candidiasis clinically [7].

In our research work, we study here the complexes of palladium (II) with the ligands benzotriazole derivate. The antifungal activities of the ligand and its complexes were done. Moreover, the activity catalytic of complexes has been studied.

II. Experimental

A. General

All reagents were purchased from best-known commercial sources and were used without any further purification. Solvents was dried and purified. Fourier transform infrared (FT-IR) spectrum of the synthesized compounds was collected with a SHIMADZU-8400/8900 and NICOLET – 6700 spectrophotometers for 400 a 4000 cm-1 and 4000-225 cm-1 respectively, with samples and KBr pressed to form tablets. The 1H and 13C Nuclear Magnetic Resonance (NMR) spectra were recorded with a BRUCKER DPX UltraShield Advance II spectrometer operating at 400 MHz, using CDCl3 or DMSO as solvent and tetramethylsilane (TMS) as internal standard. All chemical shifts were report in parts per million (ppm) relative to TMS. Mass spectra were record on a SHIMADZU-GC–MS-QP2010 spectrometer by technique electron ionization operating at 70 eV. Thin layer chromatography (TLC) was performed on a 0.2-mm pre-coated plates of silica gel F254 (Merck). The elemental analyses were obtain using an Elemental Analyzer Finnigan Flash EA1112 CHN.

B. Chemistry

1. Procedure for synthesis of ligands

1,3-phenylenebis((1H-benzotriazol-1-yl)methanone), (3): A mixture from toluene 5 mL, benzotriazole, 1 (586.8 mg; 4.9 mmol) and triethylamine (Et3N, 1.5 mL) was heat to 130 °C, during 30 minutes. The solution was add to isophthaloyl dichloride, 2, (500 mg; 2.5 mmol) in toluene (10 mL); the reaction mixture, had been refluxing for 72 h with constant stirring, under an inert atmosphere of nitrogen. The reaction progress was monitor by TLC. After, solvent was eliminate under reduced pressure and the solid obtained was dissolve in chloroform (CHCl3) and washed with saturated aqueous NaCl solution (3 times x 15 mL). The organic layer was dry over anhydrous magnesium sulfate (MgSO4) and concentrate. The residue was precipitate in ethyl ether, obtaining 381.2 mg white powder. (Yield: 41.78%). Ligand 3 is soluble in polar solvents.

1,3-bis(1H-benzotriazol-1-ylmethyl)benzene, (5): A mixture benzotriazole, 1, (676.6 mg; 5.7 mmol) in toluene (5 mL) and triethylamine (1.5 mL; 1.09 mmol) was heated to 130 °C by 30 minutes constant stirring. The solution was added to 1,3-(bischloromethyl)benzene, 4, (500 mg; 2.4 mmol) in toluene (10 ml), that reaction mixture, was subjected to reflux for 72 h with constant stirring, under nitrogen atmosphere. The reaction progress was monitor by TLC. After, solvent was eliminate under reduced pressure and the solid obtained was dissolve in chloroform (CHCl3) and washed with saturated aqueous NaCl solution (3 times x 15 mL). The organic layer was dry over anhydrous magnesium sulfate (MgSO4) and concentrate. The residue was precipitate in ethyl ether, obtaining 518.8 mg white solid. (Yield: 53.08%). Ligand 5 is soluble in common organic solvents.

2. Procedure for synthesis of complexes

Prior to assembly for metal-ligand coordination reactions, bis(acetonitrile)dichloropalladium (II), 6, precursor used in the synthesis of complexes 7 and 8 was prepared. Starting with anhydrous palladium (II) chloride (500 mg; 2.8 mmol), 15 mL were added of dry acetonitrile, the mixture was refluxed for 5 hours under nitrogen atmosphere, obtaining (468.1 mg; 1.8 mmol) of palladium precursor, [PdCl2(CH3CN)2], 6.

[Pd(NN-(1,3-bis((1H-benzotriazol-1-yl)methanone)ben-zene))Cl2], (7): Ligand 3 (100 mg; 0.27 mmol) was added in 10 ml of tetrahydrofuran (THF), while heating to 50° C until complete dissolution. An equimolar amount of [PdCl2(CH3CN)2], 6, (70 mg; 0.27 mmol) mix to the ligand solution, and the reaction was refluxed for 16 hours with constant stirring. Resulting product was filtered and washed hot with CH2Cl2, acetone and ethyl ether, obtaining a brown solid, which was dried at 60 ° C and stored under vacuum (55.5 mg, Yield: 36.32%).

[Pd(NN-(1,3-bis((1H-benzotriazol-1-ylmethyl)benze-ne))Cl2], (8): Compound 5 (100 mg; 0.29 mmol) was dissolved in acetonitrile (10 ml) and mixed with (75.2 mg; 0.29 mmol) of [PdCl2(CH3CN)2], 6, the reaction was refluxed for 15 hours with constant stirring. The reaction progress was monitored by TLC. After, the mixture was filter, the solid obtained was wash with CH2Cl2, acetone and ethyl ether, obtaining a yellow-ocher solid, which was dried at 60° C and stored under vacuum. (127.6 mg, Yield: 85%).

3. Characterization of ligands and complexes

1,3-phenylenebis((1H-benzotriazol-1-yl)methanone), (3): FT-IR (KBr, cm-1): υCH-Ph 3082.25, υCO 1695.43, υC=C-C 1487.12, υC-N 1450.47, υbenzotriazole 1039.63, υbenzotriazole 869.89; NMR 1H (400 MHz, CDCl3, ppm): 8.46 (d, 2H, J= 8.2 Hz) H10, 8.21 (d, 2H, J= 8.2 Hz) H7, 7.86 (t, 1H, J=7.9 Hz) H1, 7.61 (t, 2H, J=7.8 Hz) H9, 7.78 (t, 2H, J=7.7 Hz) H8, 8.59 (d, 2H, J=8.2 Hz) H3, 9.10 (s, 1H) H2. NMR 13C (100 MHz, CDCl3, ppm): 165.56 C5, 145.85 C11, 132.22 C4, 132.05 C6, 135.02 C2, 136.25 C3, 130.75 C7, 128.76 C8, 126.67 C9, 120.38 C10, 114.85 C1; EI-MS (m/z): 368 M+, 222 [M+-146] base peak.

1,3-bis(1H-benzotriazol-1-ylmethyl)benzene, (5): FT-IR (KBr, cm-1): υCH-Ph 3057.17, υas-CH2 2980.02, υC=C-C 1492.90, υC-N 1452.40, υbenzotriazole 1078.21, υbenzotriazole 902.69; NMR 1H (400 MHz, CD3COCD3, ppm): 8.03 (d, 2H) H10, 7.62 (d, 2H) H7, 7.40 (b.s., 1H) H1, 7.43 (b.d., 2H) H9, 7.47 (b.d., 2H) H8, 7.37 (d, 2H) H3, 7.33 (s, 1H) H2, 5.98 (s, 4H) H5. NMR 13C (100 MHz, CD3COCD3, ppm): 51.16 C5, 146.14 C11, 136.75 C4, 132.90 C6, 129.44 C2, 127.23 C3, 119.47 C7, 123.74 C8, 127.60 C9, 110.19 C10, 126.32 C1; EI MS (m/z): 340 M+, 207 [M-132] base peak.

[Pd(NN-(1,3-bis((1H-benzotriazol-1-yl)methanone)- benzene))Cl2], (7): FT-IR (KBr, cm-1): υCO 1621.22, υC=C-C 1489.42, υC-N 1447.26, υbenzotriazole 1025.84, υbenzotriazole 854.83; RMN 1H (400MHz, DMSO d6, ppm): 8.38 (d, 2H, J= 8.2 Hz) H10, 8.33 (d, 2H, J= 8.2 Hz) H7, 7.95 (t, 1H, J= 7.9 Hz) H1, 7.71 (t, 2H, J=7.8 Hz) H9, 7.89 (t, 2H, J= 7.7 Hz) H8, 8.50 (d, 2H, J= 8.2 Hz) H3, 8.82 (s, 1H) H2. NMR 13C (100 MHz, DMSO d6, ppm): 166.23 C5, 145.77 C11, 132.38 C4, 132.19 C6, 134.18 C2, 136.36 C3, 131.44 C7, 127.34 C8, 124.89 C9, 120.63 C10, 115.01 C1.

[Pd(NN-(1,3-bis((1H-benzotriazol-1-ylmethyl)benzene))-Cl2], (8): FT-IR (KBr, cm-1): υCH-Ph 3062.96, υas-CH2 2960.73, υC=C-C 1492.90, υC-N 1454.33, υbenzotriazole 1001.06, υbenzotriazole 950.91; NMR 1H (400 MHz, DMSO d6 ppm): 8.05 (d, 2H) H10, 7.74 (d, 2H) H7, 7.40 (t, 3H) H1, 7.48 (t, 2H) H9, 7.40 (t, 3H) H8, 7.27 (d, 2H) H3, 7.32 (s, 1H) H2, 5.48 (s, 4H) H5. NMR 13C (100 MHz, DMSO d6, ppm): 51.23 C5, 145.76 C11, 136.95 C4, 133.08 C6, 129.86 C2, 127.93 C3, 119.69 C7, 124.50 C8, 128.04 C9, 111.05 C10, 127.72 C1.

C. Preliminars

1. Catalytic tests of compounds 7 and 8 in the Mizoroki-Heck reaction

The reaction was carried out using a two-neck balloon as a reaction vessel, into which was added a solution of the palladium catalyst in DMF (7: 0.8 mL of 0.2024 mg/mL; 8: 0.7 ml of 0.2126 mg/mL ), triethylamine (0.1 mL, 0.72 mmol), 0.1 mL; 0.89 mmol) of yodobenzene, and 8 mL of DMF as solvent, at 140 ° C with vigorous shaking for 30 minutes, then (0.15 Ml; 1.3 mmol) of styrene was added maintaining the temperature and agitation.

The monitoring of the reaction was done by gas chromatography (GC) taking samples every hour, for 12 hours, also were taken two samples at 23 and 24 hours of reaction, adding 0.1 mL Et3N after each sample. Products obtained from the reaction were separate and characterize by GC coupled to masses.

2. In vitro biological activity of ligands and complexes against strain Aspergillus niger (A. niger)

For the evaluation of antifungal activity, the broth microdilution method was used, a standardized method recommended by the Clinical and Laboratory Standards Institute (CLSI) for the study of sensitivity to antifungals.

The procedure was done according to the recommendations of CLSI M38-A [9]. The strain used was supplied by laboratory of Department of Biology, Universidad del Valle. The microbiology group Universidad del Valle, leaded by Dr. Sci. Neyla Benitez, carried out the biological tests.

For fungal growth microdilution method was used in broth, using Mueller Hinton (MH), the method further agar diffusion potato dextrose (PDA its acronym potato dextrose agar) was used, the means of culture were incubated at 35 °C for 5 days.

To increase the concentration of conidia, this, were taken from a young A. Niger culture (5 days) and suspended in 1 mL of saline solution, agitated strongly, from this initial inoculum, a 10-1 dilution was prepared and this was the final inoculum for assay. The number of conidia was verify by the standard plate count method on PDA agar, obtaining a value of 1.15 x 105 spores/mL

Subsequently, the tests were carried out by the two methods mentioned, taking into account the protocol recommended by the CLSI, in both cases, the Mueller Hinton culture medium was used. The sample was diluted in 16, 8, 4, 2, 1, 0.5, 0.25, 0.125, 0.0625, 0.03125 g/mL for each of the compounds to be tested. Ketoconazole (positive control) was used at concentration of 16 μg/mL and as negative control strain A. Niger, without any test substance.

Microdilution plates were incubate at 35 °C for five days, after which time the result were analyze. It was observed, that with both methods the same result was obtained. Finally, the broth microdilution method was chosen since, it offers greater operation facilities during the assembly of the tests.

Additionally, tests were performed to verify if there was inhibition in the growth of A. Niger on PDA Agar plates.

III. Results And Discussion

A. Synthesis and characterization of benzotriazole ligands

Compound 1,3-phenylenebis((1H-benzotriazol-1-yl)me-thanone), (3):

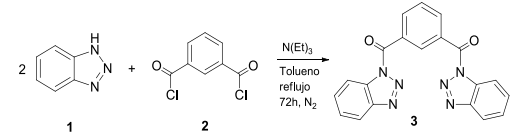

The synthesis of 3 was done by direct reaction of 1, 2 and Et3N in toluene for 72 hours, Fig. 1.

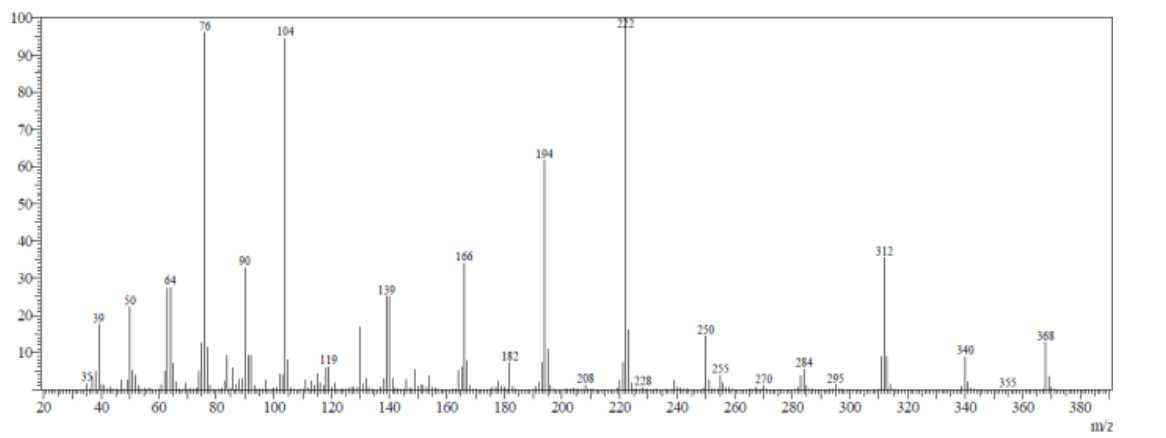

Ligand 3, was obtained as a white precipitate, stable to air, with a yield of 41.78% and a decomposition point of 184 °C. The ligand was characterized by FT-IR, mass spectrometry, mono and two-dimensional NMR (1H, 13C, in CDCl3), assignments were corroborated using two-dimensional studies. The mass spectrum obtained by electronic impact, allowed to observe the expected molecular ion m/z 368 [M]+, Fig. 2.

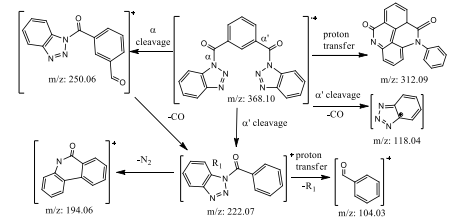

The possible fragmentation mechanism for compound 3, presented in Fig. 3, allows to observe a base peak at m/z 222, which corresponds to α-break characteristic of carbonyl group of the aromatic amides, also giving as a result a peak at m/z 118, which corresponds to benzotriazole. On the other hand, another possible route is the product of the α-break and subsequent loss of CO.

In addition, from the base peak, the subsequent rupture of the benzotriazole ring is generated, which has several characteristic breaks of N-heterocyclic amides, such as, for example, proton transfer of the aromatic ring attached to the carbonyl group and subsequent loss of benzotriazole, which leads to the peak at m/z 104.

The analysis of the infrared (IR) spectrum of compound 3 shows that, in comparison of IR spectra of ligand with benzotriazole, the ν(N–H) characteristic band at 3400 cm-1 of benzotriazole is absent. The characteristic band of carbonyls groups ν(C=O) was observed at 1695.43 cm-1; the tension band of the ν(C–N) bond appears at 1450.47 cm-1, related to the bond between benzotriazole molecules and the central ring of isophthaloyl.

Assignments for the characteristic bands of compound 3 are presented in table I.

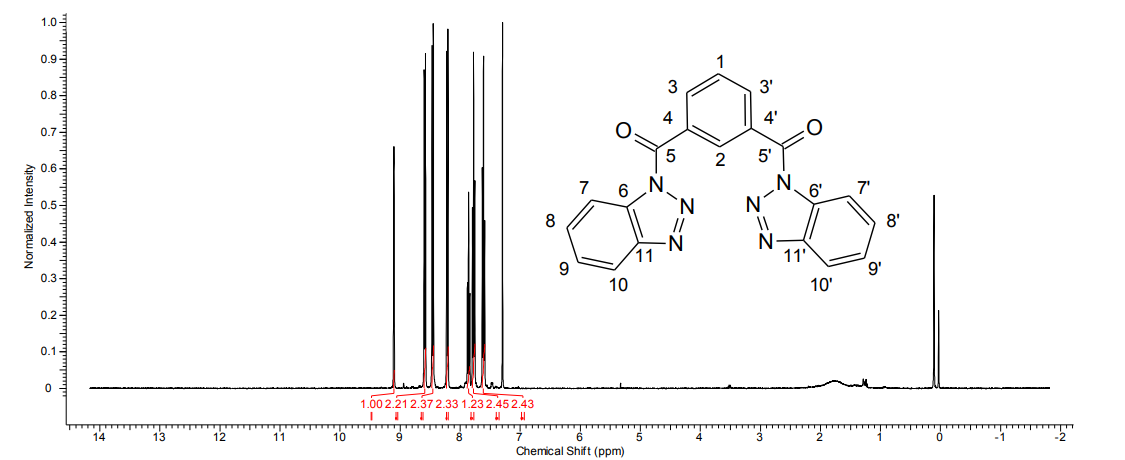

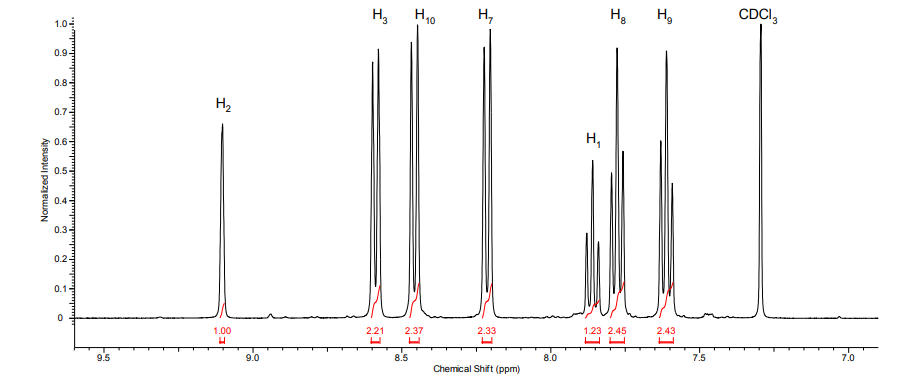

1H NMR spectrum for ligand 3 with the signals assigned to each hydrogen and the numbering of the molecule is in Fig. 4.

The triplets at 7.61 ppm (H-9, 2H) and 7.78 ppm (H-8, 2H) with coupling constants J = 7.8 Hz and J = 7.7 Hz respectively, the doublets at 8.21 ppm (H-7, J = 8.2 Hz) and 8.46 ppm (H-10, J = 8.2 Hz) correspond to the hydrogens of the benzotriazole rings.

The signal at 7.86 ppm belonging to H-1 that integrates for 1H, shows a triplet characteristic for hydrogen of this nature, with a coupling constant of J = 7.9 Hz, the doublet at 8.59 ppm, integrates for 2H, corresponds to H-3 and its coupling constant is J = 8.2 Hz, at 9.1 ppm. Is the singlet belonging to H-2, signal that integrates for 1H (Fig. 5). It was noted that the presence or absence of this hydrogen in the spectra of the metal complexes is important because it allows corroborating whether or not there was metal-carbon bond formation.

All the data obtained corroborate with analysis of the two-dimensional spectra and are consistent with the proposed formulation.

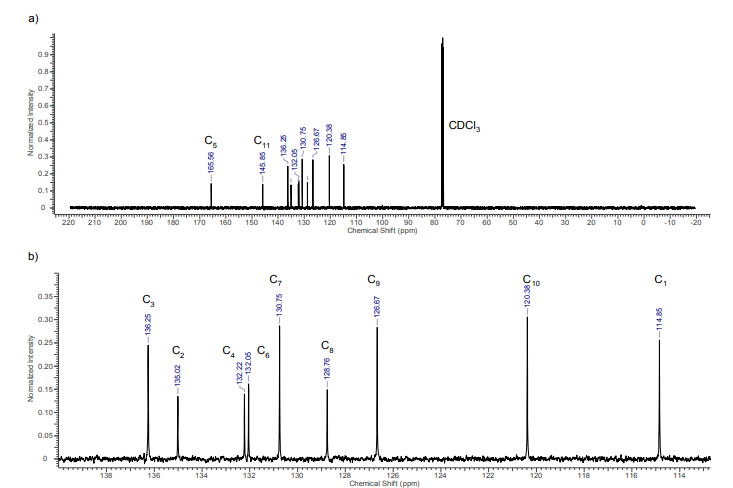

Fig. 6 shows the 13C NMR spectrum for compound 3, indicating the assignment of each signal to corresponding carbons. The signal at 165.56 ppm belonging to C5 corresponds to quaternary carbons of the connecting carbonyls. The signals at 145.85, 132.22 and 132.05 ppm correspond to quaternary carbons C11, C4 and C6 respectively. The signal at 135.02 ppm was assigned to C2 (CH); it is an important assignment, because it will allow knowing whether there is an M–C bond when reacting with a metallic center. The assignments were corroborate with the two-dimensional analysis and according to the proposal made.

Compound 1,3-bis(1H-benzotriazol-1-ylmethyl)benzene, (5):

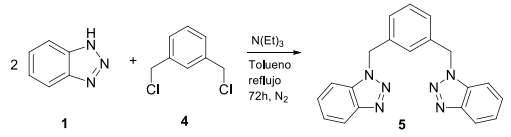

Ligand 5 was prepared by the direct reaction of the azole derivative 1 and the xylene chloride 4, in toluene with the presence of the base Et3N for a period of 72 hours, Fig. 7. The product precipitates as a white solid, stable to air, with a yield of 53.08% and melting point at 138 °C.

The characterization of ligand 5 was carried out, by mass spectrometry and by FT-IR and NMR spectroscopy and is consistent with that reported in the literature [10-12].

B. Synthesis and characterization of complexes

The pincer ligands can be coordinated to tridentate shaped metal center and generate very stable complexes with high yields. Protocols described in the literature have shown that it is possible to synthesize cyclametlated complexes of palladium (II) and nickel (II) using the same ligands, however, it has been shown that by the same synthetic routes it is possible to obtain complexes with the ligands acting with a Metal shape pincer and with the other as chelates.

Compound [Pd(NN-(1,3-bis((1H-benzotriazol-1-ylme-thyl)benzene))Cl2], (7):

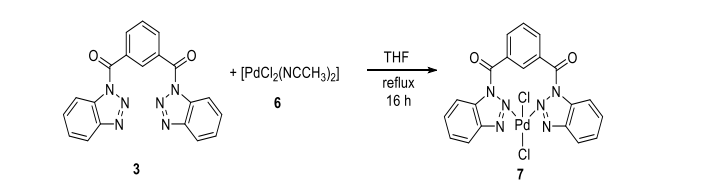

In this synthesis the ligand 3 reacted with [PdCl2(CH3CN)2], 6 in THF at reflux for 16 h, as shown in Fig. 8. After filtering, washing and drying process, a brown solid was obtain, stable to air, with a yield of 36.33%. The complex was characterize by FT-IR and NMR (1H, 13C), the assignments are corroborated with two-dimensional studies.

The comparison of the bands FT-IR of the complex 7 and ligand 3 show in Table II. It can be observed that the bands of the complex present a slight shift with respect to free ligand; these displacements are evidence of coordination of the ligand to the metallic center.

For complex 7 a very intense and wide band appears that extends from 3700 to 2400 cm-1, which is evidence of the complex hygroscopic nature, however, the band can be observed at 1213.37 cm-1, corresponding to the flexion of the aromatic ring and also observed as the band continues to appear related to the presence of the C–N bond. Therefore, it was observe that the ligand is still having benzotriazole in its structure. In general, the coordination of the metallic center leads to a decrease in the energy of the vibrations, this serves as an indication to know that palladium stabilizes the ligand molecule.

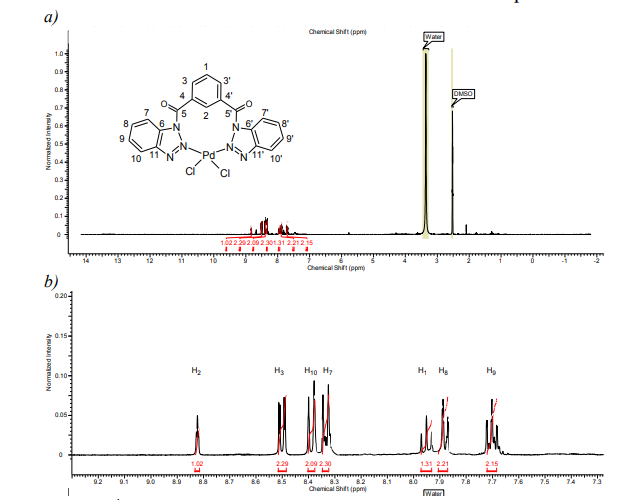

Fig. 9, shows the 1H-NMR spectrum for complex 7. In this spectrum, a displacement the signals was observed, with respect to free ligand, caused by the coordination to palladium metal center. Obviously, being very clear that there was a change in the working solvent, for free ligand was CDCl3 and in this case it is DMSO-d6, however, as reported in the literature [13], the difference of chemical shifts generated by the change between these solvents is very low enough to avoid, that the comparison between both spectra can be made. Even, it was propose, that the concentration affects even more the chemical displacements than the working solvents [14-15].

The signal of the characteristic proton to identify the type of coordination, H-2, appears at 8.82 ppm as a singlet that integrates for 1H, this is an evidence, that the coordination was of the N-N type and not N-C-N, therefore, it is not a ligand that behaves like a pincer. The other signals have shifted slightly towards the lower field with respect to those of the free ligand, consequently of the coordination of the metallic center.

13C NMR spectrum for complex 7, a slight shift in the signals is observed with respect to ligand 3, however, nothing indicating a drastic change in the environment of the carbon nuclei, the signals that appear in the spectrum correspond as follows: 166.23 ppm (quaternary carbon, C5), 145.77 ppm (quaternary carbon, C11), 132.19 ppm (CH, C3), 134.18 ppm (CH, C2), 132.38 ppm (quaternary carbon, C4), 132.19 ppm (quaternary carbon, C6), 131.44 ppm (CH, C7), 127.34 ppm (CH, C8), 124.89 ppm (CH, C9), 120.63 ppm (CH, C10), 115.01 (CH, C1).

These assignments were perform with support of the two-dimensional experiment DEPT 135, which showed the signal corresponding to C2, indicates that there was no M-C coordination and therefore, the ligand is not a pincer type.

The NMR spectra showed a decrease in the intensity of the signals because of the change in the chemical environment of the complex molecule, the metallic center affects the resonance effect of the organic nuclei.

Compound [Pd(NN-(1,3-bis((1H-benzotriazole-1-ylme-thyl)benzene))Cl2], (8):

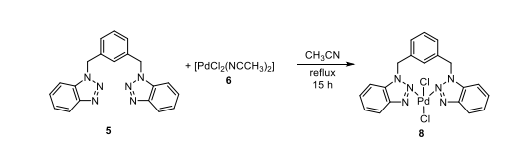

In this synthesis, ligand 5 was reacted with [PdCl2(CH3CN)2], 6 in acetonitrile under reflux for 15 h, Fig. 10 After the filtering, washing and drying process, was obtain a yellow-brown solid, stable to the air, with a yield of 85%.

Complex 8, was characterize by FT-IR and NMR (1H, 13C), assignments were corroborate with two-dimensional studies.

Parallel of FT-IR bands for complex 8 and ligand 5 are show in Table III.

Based on the above, the bands show a slight displacement, with exception of the characteristic band of the N-N symmetric stretch in benzotriazole of ligand that pronounced towards 1078.21 cm-1. This can be associated with the coordination of ligand to the metallic center of palladium through the nitrogenous part of ligand. This behavior is much more marked for this complex 8 than for 7, where the shift of this band was much lower.

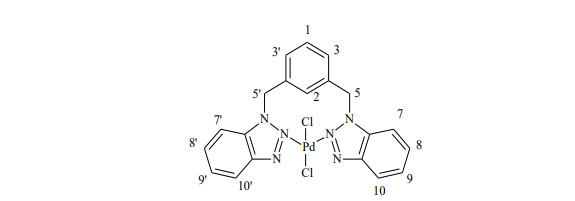

The signals of the 1H NMR spectrum of the complex 8, obtained in DMSO-d6 show in Table IV and assigned with respect to Fig. 11. A displacement of the signals, was observe due to coordination to the metallic center.

Complex 8 the presence of H-2 at 7.32 ppm appears as a singlet, so that ligand 5 also did not act as a pincer. The methylene groups that are connectors between the central aromatic ring and benzotriazole appear at 5.96 ppm as a singlet that integrates for 4H. The spectroscopic profile was not observe of an AB system, since the characteristic signals were maintain of ligand 5, indicating that there was no greater change in the environments of the protons of free ligand compared with those of complex. Neither, presence of another isomer was observed; which rules out that there is a rearrangement in benzotriazole ring. H-3 protons of the central aromatic ring appear as a doublet at 7.27 ppm (J = 7.2 Hz), proton related to H-1 appears together with H-8 protons, showing a very similar chemical nature.

The table below (Table V) shows a comparison of 13C NMR signals for complexes 7 and 8.

Assignment of quaternary carbons to 145.76 ppm (C-11), 136.95 ppm (C-4) and 133.08 ppm (C-6), was done with the support of the two-dimensional experiment DEPT 135.

The C-2 signal observed at 129.86 ppm, an important signal, indicates that, there is not M–C bond, and it is consistent with 1H-NMR spectrum, from which it is concluded that coordination with metallic center was bidentate N-N, that is, ligand 5 acts as a chelate and not as a pincer in its coordination to complex 8.

In the range of 111.05 to 128.04 ppm, signals for other tertiary carbons are observed. The signal at 51.23 ppm corresponds to C5, of methylene groups.

For both ligands and complexes observed a very similar behavior, in its spectroscopy, this was expected by the similarity of both compounds, however, the presence of the carbonyl groups that behave as electroatractors, makes the signals of 3 and 5 appear to field lower than for their counterparts 7 and 8. It wait that the carbonyl effect will also generate differences in the catalytic behavior of both compounds.

C. Preliminary catalytic activity

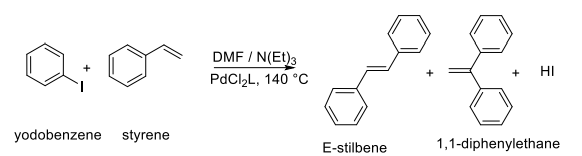

The Mizoroki-Heck preliminar catalytic activity of compounds 7 and 8 were observe using as substrates styrene and yodobenzene. Fig. 12, shows a schematic description of the reaction.

The reaction was carried out using as catalyst palladium complexes of the type PdCl2L (L= 7 or 8) in a relation catalyst: substrate 1:3000. Catalyst 7 obtained a 91.59% of conversion respect to yodobenzene and a 80.72% of selectivity toward E-stilbene, after 24 h of reaction (TON 221). Conversion of yodobenzene using complex 8, was 97.19% and selectivity to E-stilbene is 85.87% after 24h of reaction (TON 219). This results show that both catalyst are regioselective towards E-stilbene, keeping a selectivity in 80-85% during the reaction. After 1 h of reaction, was observed a higher conversion of yodobenzene in the reaction catalyzed by 7, 84.62%, versus 60.98% converted by 8, this values are in the average for similar compounds [8], in turn, the percentage of selectivity of each species produced is also affected by the difference in the ligands of each catalyst. The catalytic precursor of type 7 offers a selectivity towards E-stilbene of 85.03% and of 14.97% towards 1,1-diphenylethene, while complex 8 is selective in 53.51% and 36.49% towards E-stilbene and 1,1- diphenylethene, respectively.

D. In vitro antifungal activity

In vitro antifungal activities of synthesized ligands (3, 5) and complexes (7, 8) were carried out using the broth microdilution method, recommended by the CLSI, and the diffusion method in potato and dextrose agar (PDA) was used to verify the presence of the fungus A. niger and compared with standard antifungal drug Ketoconazole at the same concentration.

This activity was evaluated in a range of 0.03125 to 16 μg/mL using solvent DMSO: RPMI Broth (1:50) for compounds. As a negative control, the inoculum of A. niger, without any test substance. Each culture medium was incubated at 35 ° C for a period of 5 days.

After the incubation period, the results indicate that A. niger is resistant, because, it was presence of the fungus in each well of the trial, which verified by growth of the study fungus on PDA agar plates. Free ligands the palladium complexes did not show antifungal activity in the range of concentrations used against A. niger.

The inactivity of the compounds may be due to the compounds are dissociated, that is, they are not stable under intracellular physiological conditions. Another reason is that the compounds are not soluble in intracellular or extracellular conditions, considering the levels of acidity that the organism can generate with its excretions. In the case of metal complexes, it may be due to their low lipophilicity.

The above situations indicate estimation of aqueous speciation of the complexes can be by finding the hydrolysis constants of the metals (Kh), the constants of acidity (Ka) of the ligands and the affinity constants (log β). With data you can simulate the species along the pH range and produce a graph of relative distribution, if it, do not can find Ka for the ligands, you could do a simulation with similar ligands and their respective values, thus having a way of predicting how stable the complexes are under cellular conditions.

The compounds derived from benzotriazole and with great steric hindrance evidence low antifungal activity against C. albicans [16], it can be due to low penetration capacity in the cells. Biological activity of compounds also depends on the nature of ligand, concentration, nature of metal ion, nature of anion surrounding the metal ion, coordinating sites and geometry of complexes.

IV. Conclusion

New, air-stable Pd (II) complexes, containing bidentate NN-donor ligands, were synthesized and characterized. The structures of the ligands: 1,3-bis((1H-benzotriazol-1-yl) methyl) benzene and 1,3-bis(1H-benzotriazol-1-yl) methanone) benzene were characterized spectroscopically.

The coordination ligands (3, 5) with Pd (II) metallic center was bidentate N-N and is not a pincer ligand.

Synthesized palladium complexes were highly active as catalysts in the Mizoroki-Heck reaction involving yodobenzene and styrene as substrates: great selectivity towards the production of E-stilbene was evidenced.

The results of antifungal activity for the free ligands and their metal complexes with Pd (II) rule out activity against the specie of Aspergillus studied with the conditions of solubility present for complexes and ligands.
