I. INTRODUCTION

The dual-phase steels are usually the most efficient solution for engineering issues, which requires specific performance conditions. Those steels are obtained through relatively simple methods by varying its composition or applying some heat treatments [1]. The dual phase ferrite- perlite steel is one of the most common materials in terms of carbon steels because of its great versatility. This material allows many additional processes as diverse heat treatments, like annealing, carburization, nitriding, normalization and good weldability. Due to this fact, this material has a huge application range, among which the manufacturing of some mechanical parts especially highlights.

The Charpy impact test is such a significant tool for the determination of fundamental data for design aspects, like the impact toughness, the brittle-ductile transition temperature, that is, by definition, the temperature in which the material changes its behaviour from ductile to a brittle one; besides others. Those properties define behaviours that considerably affect the material performance in different application environments. The obtained data are crucial to establish safe design parameters.

Nowadays, it is commonly worked between a wide condition range (from under zero temperatures [2] to temperatures close to the 600°C [3]). The design parameters for extreme conditions, such as the mentioned, have the Charpy impact test in common. This test is a simple (with few restrictions) and powerful, and for that reason has many applications. Nevertheless, it is remarkable the fact that, it has many variables to be properly controlled to achieve a useful result.

The examination of the fracture surfaces is a very important process, because it lets get a complementary evaluation of the ductile- brittle transition temperature. Categorizing the shear-fracture (fibrous fracture) and cleavage-fracture (granular fracture) offer relevant information of the toughness. The classification method is usually based on the shear-fracture percentage, in which a 100% indicates a ductile fracture (above the transition temperature) although there are generally mixed fracture [4].

Experimental, theoretical and numerical studies of the relationship between the transition temperature and the microstructural features in ferrite-perlite steels have been reported in the literature. Nevertheless, the fracture mechanisms on impact test specimens have not been fully understood. The aim of this study is to determine the relationship among the transition temperature, energy absorbing capacity, chemical composition and microstructural characteristic of ferrite-perlite steels.

II. MATERIALS AND METHODS

As received material was provided in a hot rolled condition. Chemical composition determined by optical emission spectrometry is showed in table I. Samples were heating above the critical temperature (910 °C) , holding for 300s for transformation to and air cooling. This Normalized heat treatment establishes a more uniform carbide size and distribution. Figure 1 shows optical micrograph of ferrite - perlite steel. The shape of ferrite grain is regular and perlite distribution appears in grain boundaries homogeneously distributed because of normalized heat treatment.

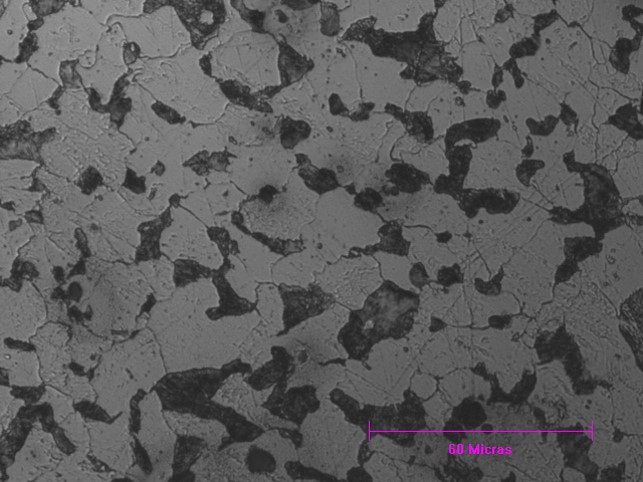

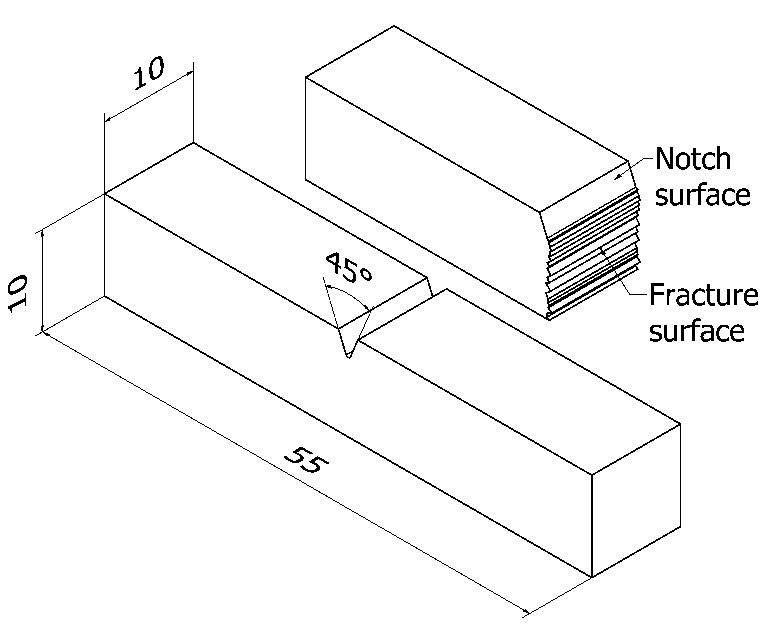

Samples are prepared according to ASTM E23-16b standard. The dimensions of the samples are 10mm x 10mm x 55mm with a 2 mm deep 45° V-notch, sample schema is presented in the fig. 2. The samples were tested with variable temperature from -60°C to 92°C, in order to determine the transition temperature. The samples temperature was varied through a liquid medium. Alcohol with liquid nitrogen was used to cool and hot water was used to warm the samples. Stabilization times of 5 minutes for samples and tongs was taken into account. Finally, (fig. 3 shows the fracture surface percentage was obtained according to ASTM E23-16b [4].

III. RESULTS AND DISCUSSION

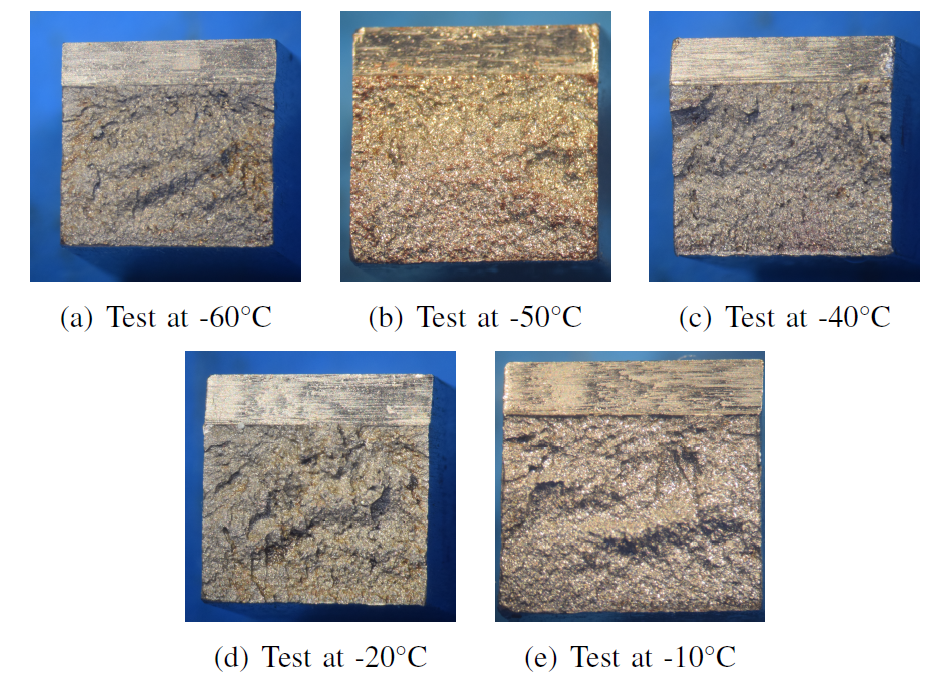

The resulted fracture surfaces of the tests with the lowest temperatures are shown in figure 4. In this test set, implemented with under zero temperatures, it is evident that the percentage of cleavage fracture is 100%, so it is a totally fragile or brittle fracture under the transition temperature of the material. That is why, it is hard to recognize a big difference between the related surfaces.

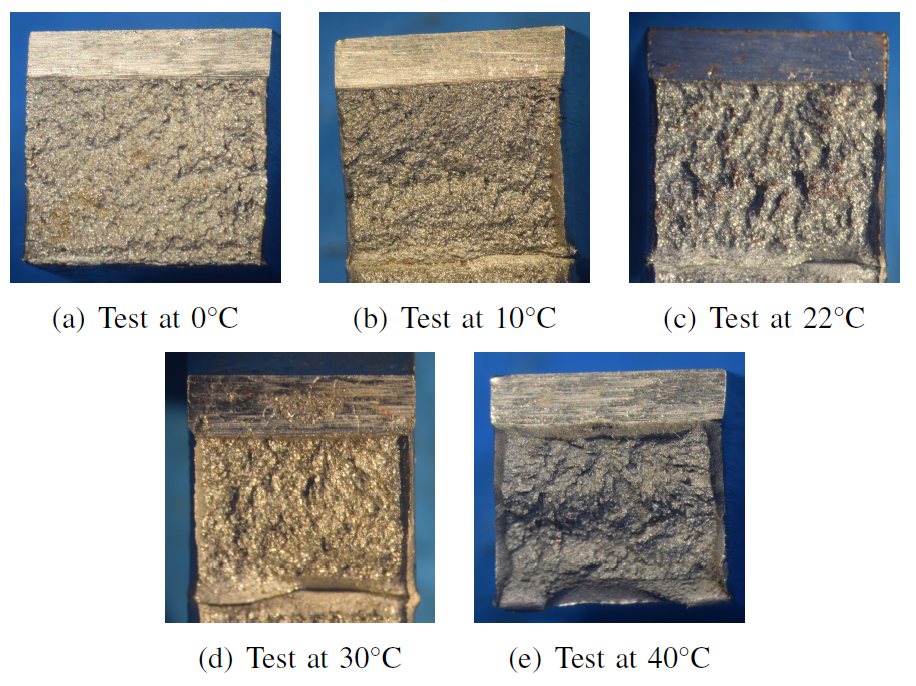

Fracture surfaces obtained by higher temperature tests are showed in Fig. 5. In this case Figure 5(a), 5(b), a increase of shear-fracture percentage was obtained (approximately 5% to 10%). Nevertheless, in the figure 5(c), 5(d) and 5(e) a significant rise in the shear-fracture percentage can be appreciated (between 30% and nearly 40%), it means that the test started to approach a little the transition temperature, where also the shear lips could be appreciated.

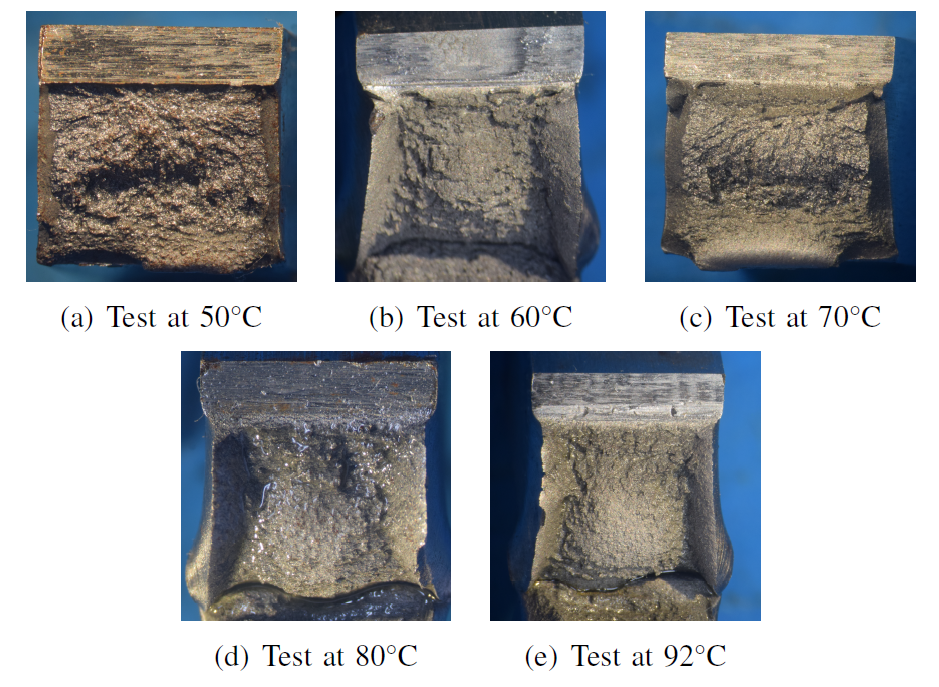

Viewing the results of the highest temperatures tests (Fig. 6), it is observed a high shear-fracture percentage. In a more specific approach, it could be stated that those fracture surfaces were made due to tests over the transition temperature, since the percentage of those surfaces are almost 60% or 70%. That means that the transition temperature might be in a range between 40°C and 50°C.

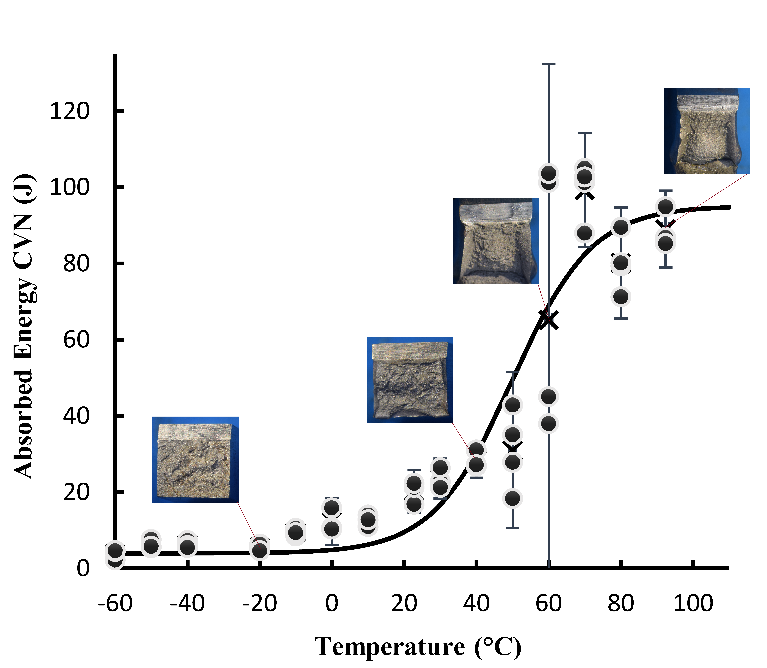

With the absorbed energy vs temperature graphic,(Fig. 7) the transition temperature curve of the worked ferritic-perlitic steel was obtained and the following facts were deducted:

1) The temperature in which the material is completely ductile is 80°C.

2) The temperature in which the material is completely brittle is approximately 10°C.

3) The average of the temperatures 1 and 2, equivalent to the material’s transition temperature (the middle point between being ductile or brittle) is 45°C.

It could be appreciated that the absorbed energy between the -60°C and 0°C is so similar and shows a very slow rise. However, between 10°C and 80°C it has a different behaviour, since the absorbed energy increases dramatically until stabilises at 90°C.

As seen in the fit-function’s equation (1) [5]. The parameters ai can be determined, being: a1 = 0.4, a2 = 9.7, a3 = 50. y is expressed in [Kg · m].

Where the parameters might be read as: a1 the minimum value of Y; a3 is the temperature in which the parabolic tangential function has an inflection point; and a4 is the measure of the range where the transitional behaviour occurs.

Furthermore, it is observed that the trustworthiness range based on the measured data for the 60°C temperature is considerable, that means, there is a huge variance in this temperatures (common within the ductile temperature range) [6] and it needs enough data (around 5 tries each 5°C) to determine exactly the curve profile with its own statistical treatment [7].

In comparison, with some previous studies [8] - [9], it is found out that in quenching and temperable steels, such as the 4340, the main values of absorbed energy are 57J for the dual phase tempered bainite-ferrite, which is the one with the highest toughness. Followed by 36J of bainite-ferrite, 20J for the whole bainite microstructure, 11J for the martensite-ferrite and the least is the martensite (6J), all data were taken at room temperature. Although the steel tested for this particular study has ferrite-perlite structure (a hardly-temperable steel), the absorbed energy tends to be higher at room temperature. Nevertheless, it is not proper to compare the absorbed energy parameter between different tests, because the conditions vary and is impossible to ensure all the conditions and the machine systematic errors. The quantification of this energy is only useful to determine the curve behaviour. Also, it is important to take into account the cleavage-characteristic stress, in order to determine more efficiently the transition temperature and the velocity by which the test is carried out [10].

Another considerable factor to explain the behaviour differences between dual phase steels is the equivalent carbon, that influences directly the toughness of the material. The resulted carbon equivalent for the worked steel shows a percentage of 0.2116% (using (2) according to [11]), which is comparatively low, taking into consideration that, for the 4340 (high-alloyed steel), it nearly doubles this value.

Finally, it can be stated that it is extremely complicated to make such a reliable test, since there are always multiple factors that make increase the error dramatically. The test was not executed following strictly to ASTM E23-16b standard, due mainly to availability of samples, making hard a suitable statistical treatment for considering a Weibull distribution [7,12]. Most of his scatter is due to difficulties in preparing reproducible notches, while some is due to variability of the exposure times in the medium with temperature and variability the velocity at which the operator set the specimen in the impact place. However, it was achieved a satisfactory behavior approach of the absorption energy during the impact as a temperature function of a dual phase ferrite- perlite steel.

IV. CONCLUSIONS

The impact test results do not only depend on the material or temperature, but also on endless variables, which contribute to rise the data dispersion.

If a test is realised close to the transition temperature, tiny temperature changes generate huge changes in the absorption energy of the material.

Due to the high data dispersion it is required the use of complex mathematical methods to obtain a good behaviour approach.

The fracture surface analysis may be a very useful tool to deduce the range, in which the transition temperature is to be found.

The impact tests give data with very high dispersion, so that numerous tests under the same conditions (tries) are needed in order to obtain a reliable value.
