Introduction

Itaconic acid (IA) is a natural compound, which can be obtained from the fermentation of Aspergillus itaconicus and Aspergillus terreusfungi^1,2. This dicarboxylic acid has two different acid groups that can be selectively esterified.. The acid and its esters, possibly due by their structural similarity with acrylates and methacrylates, have found interest in the preparation of high molecular weight polymers and various copolymers with other vinyl monomers since they were first polymerized by Cowie in the mid-70s^4,5,6,7,8. This carboxylic acid has been used in the polymer industry in copolymerization reactions to improve properties such as adhesion, emulsion stability, and dye receptivity..

Moreover, itaconic acid has been employed in the synthesis of hydrogels (HG)^10,11, and more recently itaconic acid and the monomethoxy ethyl itaconate have been used in the synthesis of superabsorbent hydrogels (HG), finding that in some cases they are capable of absorbing up to 43,00% of their weight in water¹². These materials are also capable to absorb metal ions from aqueous solutions¹³. It has been shown that the carboxylic groups of itaconic acid or its monoesters are responsible for the adsorption process of metallic ions and it is believed that this occurs through different mechanisms among which is the complexes formation¹³.

On the other hand, the use of itaconic acid as a ligand in the synthesis of metal complexes has also been reported in several studies, in which were used different metal salts, in particular nitrates and carbonates. Among the first studies is that of Ya- suda et al.¹⁴in which they found by acid-base titration that for Pb, Cu, Cd, Zn and Ni, the metal: itaconic molar ratio in the complexes was 1:1. Afterward, in 1987 Allan. synthesized itaconic acid complexes with Mn, Co, Ni, Cu and Zn, demonstrating by IR spectroscopy that the complexes, except for Cu, possessed water of crystallization and proposes that the metal: ligand: water molar ratio is 1: 1: 1. In 1994 El-Bellihi¹⁵studied complexes with Cu and Co, by elemental analysis, IR, TGA/DTA, and powder diffraction, obtaining that the empirical formula of these complexes was M(C.H.O.)..H.O. More recently Wibowo et al. (2018)¹⁶synthesized itaconic acid complexes with Zn, finding by X-ray diffraction, electron microscopy, IR spectroscopy, and thermogravimetric analysis, that the metal: ligand: water molar ratio is 1: 1: 2.

In particular, the interest in studying Cu and Zn complexes lies in the fact that these metals are involved in several biological processes and after iron they are the most abundant transition metals in the human body. There are a considerable number of metalloproteins and other enzymes that contain Cu and Zn¹⁷. Due to this they have also been used in the study of complex that presents antitumor and anticancer activity^18,19,20.

From the crystallographic point of view, transition metal (Zn, Cd)^16,21, earth-alkaline (Ba, Ca)^22,23, and lanthanide complexes (La, Gd, Tb, Dy)^24,25with itaconic acid have been reported.

In these complexes, packing in the solid-state could originate diverse cohesive interactions that allow the formation of coordination polymers were water molecules would complete the geometry coordination around metals. In this sense, in recent years, significant attention had been paid in designing and development of coordination polymers which are undoubtedly very promising as multifunctional materials because they can have multiple applications in gas storage, heterogeneous catalysis, chemical sensors, energy conversion, drug delivery, among others²⁶.

To continue the study on the synthesis, characterization and applications of superabsorbent hydrogels, this work describes the synthesis of Cu (II), Zn (II) and Sm (III) metal complexes with itaconic acid, in alcoholic solution, and its characteriza- tion using FTIR, UV-visible spectroscopy, TGA, TVA, conductimetry, and powder X-ray diffraction techniques.

Experimental

Reagents

Itaconic acid (IA) (Aldrich 99%), copper acetate monohydrate [Cu(CH₃COO)₂.H₂O, Sigma-Aldrich 98%], zinc acetate dihydrate [Zn(CH₃COO)₂.₂H₂O, Sigma-Aldrich 99.9%], samarium acetate hydrate [Sm(CH₃COO)₃.H2O, Sigma Aldrich 99%). The solvents used in the synthesis were reactive grade methanol and ethanol and deionized 18 Ω water

Synthesis of the complexes

The synthesis was performed following a modification of the procedure described in the literature²⁷, where the metallic acetate is dissolved in 10 ml of methanol, and the itaconic acid in 10 ml of ethanol, with a ratio 1:2 molar (acetate: ligand). Mixing both solutions slowly and allowing them to react for 2 hours with gentle heating (~ 40 ºC). The final product is filtered under vacuum and washed several times with 10 ml portions of ethanol.

Characterization

The products were characterized by melting point measurements, solubility, Fourier transform infrared spectroscopy (FTIR), thermogravimetric analysis (TGA), thermal volatilization analysis (TVA), conductimetry, and powder X-ray dif- fraction. For the Cu complex (II) a conductimetry study was carried out.

Infrared spectra were recorded on a Perkin Elmer 2000 FTIR instrument. The samples were prepared as KBr discs or films casting on KBr cells.

Thermogravimetric analyzes (TGA) were carried out using a Perkin-Elmer TGA-7 thermobalance and scans were per- formed at heating rates of 10 °C/min between 20 and 550°C under nitrogen flow. Thermal volatilization analysis was carried out in a vacuum line, heating the samples of about 100 mg from room temperature to 390°C for 30 min under a moderate initial vacuum. Volatile fractions were condensed at room temperature and analyzed by FTIR spectroscopy.

Conductimetric titrations were performed using a Benchtop conductivity Meter 860032 Sper Scientific. The measures were carried out by titring a solution 0.05 M itaconic acid with one of copper acetate of the same concentration. The conductance was measured for each addition of the saline solution. Each measure was made by triplicate. The molar ratio of the complex was determined by the inflection point in the conductance/titrant volume curve.

The electronic absorption spectra were performer using a Thermo Scientific Evolution 300 UV-Visible Spectrophotometer between 400-700 nm.

The X-ray powder diffraction patterns for the itaconic complexes with Cu, Zn, and Sm were collected at room temperature in a Siemens D5005 diffractometer using CuKα radiation (λ = 1,5418 Å). A small quantity of each compound was ground mechanically in an agate mortar and pestle and mounted on a flat holder covered with a thin layer of grease. The samples were scanned from 5-50° 2θ, with a step size of 0.02° and counting time of 10s. Quartz was used as an exter- nal standard.

Results and discussion

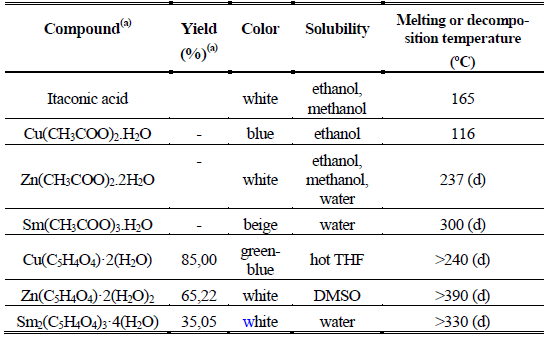

The synthesis of the copper (II), zinc(II), and samarium (III) itaconic acid complexes were carried out as previously de- scribed. The copper complex was obtained with a yield greater than 80%, while that for Zn and Sm yields were about 65 and 35%, respectively. The three obtained products decompose before melting and, unlike the starting reagents, the complexes were insoluble in methanol and ethanol. The difference in solubilities about the starting materials, is indicative that a reaction took place. Another fact that shows the formation of the complexes is that the decomposition temperatures were different from that of the starting salts. Table 1 shows yields and some characteristics of the obtained complexes which are compared with those of the starting reagents.

Figure 1 shows the IR spectrum of the complex obtained from the reaction between itaconic acid and zinc acetate, which can be considered as representative of the three complexes synthesized in this work, since all the spectra were quite similar. The spectrum of the product is compared with that of the itaconic acid and the corresponding acetate.

There it can be seen several signals that indicate that itaconic acid reacted with Zn. The disappearance of the OH stretching signal of the carboxylic acid between 3400 and 2400cm-1 and displacement and splitting of the carbonyl signal from 1704 cm^-1 at 1590 and 1389 cm^-1, characteristics of carboxylate groups, indicate that the carboxyls groups react with the metal ion. There is worth noting that de frequencies of these signals are different from those of Zn acetate, which are found in 1564 and 1443 cm^-1. Additionally, the double bond, C=C band that appears at 1629 cm^-1 in the acid, due to the conjugation with the carboxyl group, is displaced at 1654 cm-1 in the product. All these observations are indicative of the formation of the complex, and further suggest that itaconic acid coordinates to the metal through the carboxylate groups. Furthermore, the O-H stretch band (3600 and 2600 cm^-1), suggests that the complexes contain a certain amount of water, as confirmed by the TGA studies that will be described later.

On the other hand, it is a known fact that carboxylates can coordinate to metal ions in different ways and how they do so is related to the value of the difference between the frequencies of the asymmetric (νAs) and symmetric (νS) bands of the carboxylate groups, as was proposed by Deacon and Phil-lips28. They found that when the values of ΔνAs-S ≤ 100 cm^-1, the acetates act as bidentate chelates or bidentate-bridges; if values are ΔνAs-S ≥ 200 cm^-1 they act as monodentate ligands and when values are between 100 cm^-1 and 200 cm^-1 they form ionic compounds.

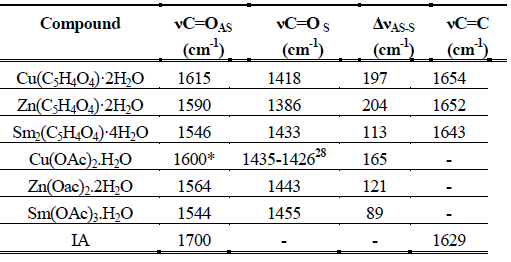

In table 2 are shown the frequencies values in the zone 1300 to 1750 cm^-1 of the complexes, as well as for the salts and IA. There it can be seen that the values of Δν_As-S for Zn and Cu complexes are 204±6 y 197±6 respectively, these values are in the border of a monodentate coordination and an ionic interaction. In order to clarify the type of interaction for these complexes, the UV-Visible spectra of the copper complex were compared with the copper acetate. In the case of the acetate, the spectrum showed a maximum at 774 nm while for the complex the maximum appears at 686 nm. The electron pairs of the carboxylate groups ligands in ionic compounds, do not alter the crystalline field and no change would have been seen in the spectrum if the copper complex (Cu(C.H.O.)) would be ionic. Therefore this hypsochromic shifting of the maximum from 744 to 686 nm confirms that coordination between each carboxylate group in IA and the metallic ion must be monodentate; thus, IA acts as a bidentate ligand.

Since both, acetate and the Zn complex are colorless, it was not possible to obtain their UV-vis spectra, but given the similarities between the Cu and Zn complexes and the Δν_As-S value obtained for Zn complex, it can be assumed that this complex is also monodentate.

As for both complexes the interaction between the carboxylate groups and the metal center is of a monodentate type, it means that both carboxylate groups must participate in the coordination as shown in Figure 2a. This would suppose a neutral spe- cies and the itaconic-metal relationship would be 1: 1.

In the case of the Sm complex, the Δν_AS-S value is 113 ± 6, which strongly suggests that this complex is ionic. Besides this metal ion produces a different type of coordination from the other metals, the samarium is trivalent and the ligand-metal ratio could be 3:2 See figure 2b.

The characteristics of the reaction products and the results obtained by IR spectroscopy clearly indicate that itaconic acid reacted with the metal through the carboxylate groups. IR spectra also suggest the presence of water in the compound. However, these results do not indicate the structure or stoichiometry of the complexes, as well as how many IA molecules there are per metal atom and whether the water is part of the complex or it is just moisture in the sample.

In order to try to estimate the stoichiometry of the complexes, a TGA study was carried out, which in addition to determine the stability of the compounds, allows to establish the degradation process of the material and compute the metalligand ratio for all the compounds.

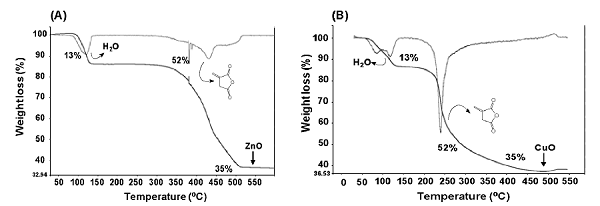

In figure 3, the thermograms obtained for the Zn/(C.H.O.) and Cu/(C.H.O.) complexes, in which the metal is divalent, are shown.

The curve shows that the material loses weight in two clearly differentiated stages; the first one occurs approximately between 80 and 138ºC and that corresponds to 13% of the mass of both samples. It is well known that water is released at temperatures close to 100ºC and when it is coordinated it can be released at slightly higher temperatures²⁸. The fact that water releases ends close to 140º for the Zn complex and 150º for the Cu complex, allows us to suppose that the water present would be coordinated with the metal.

The second stage begins above 200 and ends near 500°C. For zinc-complex, this stage takes place at least two processes, as evidenced by the change in the rate of degradation around 450ºC and which is more evident in the DTGA curve. In the case of the cooper-complex, it appears to occur in one step. This stage, which represents a weight loss of 52 and 51%, respectively, corresponds to the release of the ligand. It can be released as itaconic anhydride, as may be expected in this temperature range^15,29.

At this point, it is worth mentioning that in the IR spectrum (not shown) of the small amount of condensation product released when the Cu complex is heated to around 250 ºC in the TVA, the main IA bands appear, confirming that the ligand is effectively released at this time.

When heating reaches temperatures close to 500ºC, a residue with a mass equivalent to 35-37% of the initial weight is obtained. This residue corresponds mainly to metal oxide, in this case ZnO or CuO. The formation of metallic oxides is in agreement with previously reported results^1,9,30,31. The entire degradation process that occurs in the TGA experiment is shown in Scheme 1.

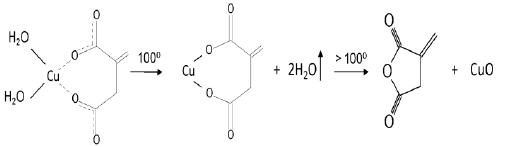

At this point is important to remark two aspects related to the degradation process: It is well known that when polyitaconates are heated at temperatures near 100°C, they form anhydrides and release their side chains as alcohol^3,32. This fact suggests that the complexes may begin to decompose at temperatures close to 100 °C, in a similar way to form the itaconic anhydride which can undergo further heating, in other decomposition products that subsequently volatilizes at a higher temperature. The little amount itaconic acid observed in the degradation process when the sample was heating over 250°C in TVA, could be a secondary product resulting from the hydrolysis of the anhydride and the released water during the heating of the complex at this temperature. In the TVA, the heating was not progressive as in TGA. It was done fast and, probably, water release from the complex at the same time the anhydride was formed.

Knowing the degradation products and their proportion, it is possible to calculate the corresponding components of the complex assuming an empirical formula of M_n(C5H₄O₄)_mZ (H.O).

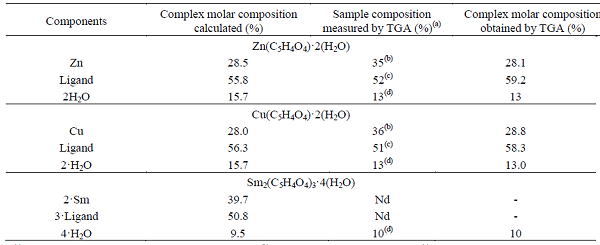

The percentage composition obtained by TGA for the Zn and Cu complexes is shown in table 3, and the measured values are close similar to the empirical formula of M_n(C₅H₄O₄)_m -Z(H₂O).

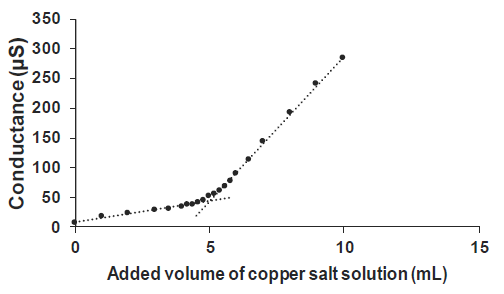

To corroborate the (C₅H₄O₄)/Cu molar ratio in the copper complex, conductometric evaluation was carried out in the complex formation reaction. For this, methanolic solutions of itaconic acid and copper acetate of equimolar concentrations of approximately 0.05 M were prepared. Methanol was used as a solvent since the copper complex is insoluble in this solvent and its contribution to conductance must be negligible. The average behavior of the conductance vs. the volume of copper salt added to the IA solution is represented in figure 4. The two curves intersect around 5 mL, which is the volume used of the IA solution. This fact corroborates that the (C₅H₄O₄)/Cu ratio is 1:1 as suggested by IR spectroscopy and indicated by the TGA.

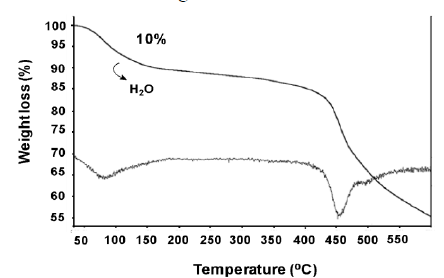

The TGA of the Sm complex (figure 5), as for the two previous complexes, shows two processes of mass loss, the first one that occurs around 100ºC, is associated with the water release of the complex, and that corresponds to 10% of the total mass of the sample. The second one, which surely involves the loss of the ligand, begins at 250º and continues over 600ºC out of the range of work of the instrument. This fact prevent us to determine experimentally how much mass is lost at this stage and therefore determine its composition.

However, from the IR results it can be assumed that the samarium complex is ionic and as for the others two complexes, the metal does not change its valence after it is formed.

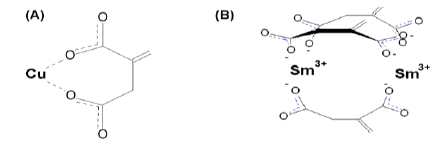

These facts strongly suggest that the molar composition of the complex may be Sm.(C.H.O.). as shown in figure 2. Moreover, if the purified complex has a water contents of about 10%, ninety percent corresponds to the Sm.(C.H.O.)., indicating the complex must contain 4 water molecules. This structure shows some resemblance to the stoichiometry of the samarium complexes with amino acids previously reported by Contreras et al.³³.

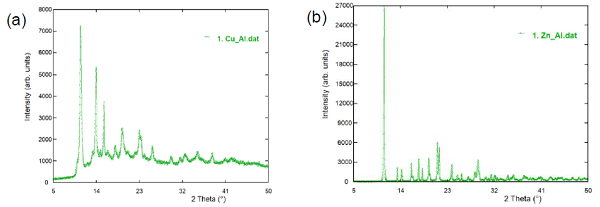

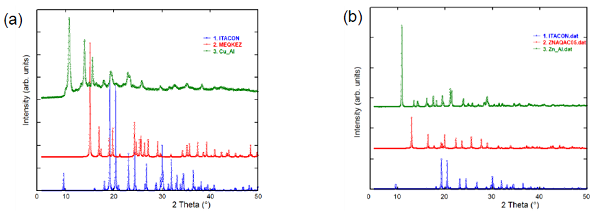

The X-ray diffractograms of Cu and Zn itaconate complexes are shown in figure 6. For samarium complex an amorphous pattern was obtained.

The powder patterns of the reagents used in the synthesis were calculated from their crystal structures searched in the Cambridge Structural Database (CSD, version 5.41, March 2020)^34,for itaconic acid (ITACON), copper acetate MEQKEZ) and zinc acetate (ZNAQAC05). Figure 7 shows the comparison of powder patterns between the reagents and the formed complexes where it is evident the formation of new compounds.

For the Cu and Zn itaconate complexes, the powder patterns were completely indexed using the program Dicvol04³⁴, which gave a unique solution in monoclinic cells. The systematic absences determined the space group to be P2./c. This result confirms a previous study reported for the Zn complex¹⁶.

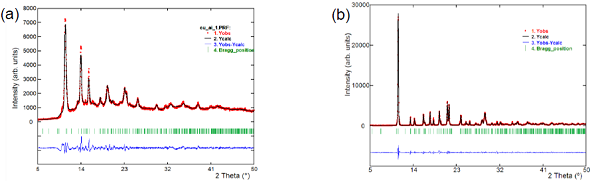

With the purpose of confirming the unit cell parameters, a Le Bail refinement³⁶of the whole diffraction pattern without structural was carried out using the Fullprof program³⁶. Figure 8 shows a very good fit between the observed and calculated patterns in both cases. Unit cell parameters for Cu itaconate: .= 13.121(3) Å, .= 14.747(3) Å, .=10.556(4) Å, β = 111.48(2)°, V= 1900.6(1) ų. Unit cell for Zn itaconate: a= 17.319(1) Å, b= 7.2015(5) Å, c= 13.1540(8) Å, β= 110.981(4)°, V= 1531.7(1) Å..At present, more work is caring out in our laboratories to obtain more information about the crystal structure of the complexes, especially of the samarium.

Conclusions

The method of synthesis allows obtaining complex in good yields. The combined studies of IR and TGA strongly suggest that the divalent metals, Zn and Cu form covalent monodentate complexes with a molar radio M: (C.H.O.) 1:1 and two water molecules: M(C.H.O.)·2H.O, while for Sm an ionic complex with a Sm:(C.H.O.) molar radio 2:3 and with 4 molecules of water is proposed. The X-ray diffraction study indicates that the Cu and Zn complexes crystallize in monoclinic cells with space group P2./c, whereas Sm complex has been obtained as an amorphous material.

References

1. JL Velada, E Hernández, LC Cesteros, I Katime, A study of the thermal degradation of several poly(monoalkylaryl itaconates). Polym. Degrad. Stab., 52, 273-282 (1996).

2. CT Calam, PW Clutterbuck, AE Oxford, H Raistrick. Studies in the biochemistry of micro-organisms. Biochem. J., 33, 1488 (1939).

3. M Carrillo, A Martínez de Ilarduya, ML Arnal, C Torres, F López-Carrasquero. Synthesis, caracterization and thermal behavior of Poly (methyln-octadecyl itaconate) a comb-like polymer with crystallizable side chain. Polym. Bull., 48, 59-66 (2002).

4. JMG Cowie, SAE Henshall, I c wen, elic ovi . Poly (alkyl itaconates): 4. Glass and sub-glass transitions in the dialkyl ester series, methyl to hexyl. Polymer, 18, 612-616 (1977).

5. JMG Cowie, Z Haq. Poly (alkyl itaconates) part v copolymers of selected mono-and dialkyl esters. Eur. Polym. J., 13, 745-750 (1977).

6. JMG Cowie, Z Haq. Poly (mono n‐alkyl itaconic acid esters): Their preparation and some physical properties. Br. Polym. J., 9, 241-245 (1977).

7. JMG Cowie, Z Haq. Some aspects of the thermal stability of poly (alkyl itaconic acid esters). Br. Polym. J., 9, 246-250 (1977).

8. J G Cowie, I c wen, elic ovi . Dynamic mechanical spectra of poly (itaconic acid esters) containing phenyl and cyclohexyl rings. Polymer, 16, 869-872 (1975).

9. JR Allan, JG Bonner, AR Werninck, HJ Bowley, DL Gerrard. Thermal studies on itaconic acid compounds of some transition metal ions. Thermochim. Acta, 122, 295-303 (1987).

10. H El-Hamshary. Synthesis and water sorption studies of pH sensitive poly(acrylamide-coitaconic acid) hydrogels. Eur. Polym. J., 4, 4830-4838 (2007).

11. A El-Halah, F López-Carrasquero, J Contreras. Applications of hydrogels in the adsorption of metallic ions. Cien. & Ing., 39, 57-70 (2018).

12. A El-Halah, J Contreras, L Rojas-Rojas, M Rivas, M Romero, F López-Carrasquero, New superabsorbent hydrogels synthesized by copolymerization of acrylamide and N-2-hydroxyethyl acrylamide with itaconic acid or itaconates containing ethylene oxide units in the side chain. J. Polym. Res., 22, 233 (2015).

13. A El-Halah, D Machado, N González, J Contreras, F López- Carrasquero. Use of super absorbent hydrogels derivative from acrylamide with itaconic acid and itaconates to remove metal ions from aqueous solutions. J. Appl. Polym. Sci., 136, 46999 (2019).

14. M Yasuda, K Yamasaki, H Ohtaki. Stability of Complexes of Several Carboxylic Acids Formed with Bivalent Metals. Bull. Chem. Soc. Jap., 33, 1067–1070 (1960).

15. AA El Behini. Kinetics of the non-isothermal decomposition of Cuand Coitaconato complexes. J. Thermal Anal., 41, 191-200 (1994).

16. AH Wibowo, Y Suryandari, A Masykur, S Perez-Yanez, A Rodriguez-Dieguez, J Cepeda. Zinc/Itaconate coordination polymers as first examples with long-lasting phosphorescence based on acyclic ligands. J. Mater. Chem., 6, 10870-10880 (2018).

17. L Mezzaroba, D Frizon Alfieri, AN Colado Simão, EM Vissoci Reiche. The role of zinc, copper, manganese and iron in neuro-degenerative diseases. Neurotoxic., 74, 230-241 (2019).

18. T Walsh, H Sandstead, AS Prasad, P Newberne, PJ Fraker. Zinc: health effects and research priorities for the 1990s. Environ. Health Perspect., 102, 5-46 (1994).

19. Z Pan, S Choi, H Ouadid-Ahidouch, J M Yang, J H Beattie, I Korichneva. Zinc transporters and dysregulated channels in cancers. Front. Biosci., 22, 623-643 (2017).

20. EG Ferrer, LL López Tévez, N Baeza, MJ Correa, N Okulik, L Lezama, T Rojo, EE Castellano, OE Piro, PAM Williams. Molecular structure, bioavailability and bioactivity of [Cu(.- phen).(cnge)](NO.).·2H.O and [Cu(.-phen)(cnge)(H.O)(NO.).] complexes. J. Inorg. Biochem., 101, 741-749 (2007).

21. JE Contreras, B Ramírez, G Díaz de Delgado. Structure of diaqua(itaconato) cadmium(II), [Cd(C.H.O.)(OH.).]. J. Chem. Cryst., 27, 391-395 (1997).

22. A Briceño, G Díaz de Delgado, B Ramírez, WO Velásquez, A Bahsas. Crystal chemistry and thermal behavior of metal salts and complexes of unsaturated dicarboxylic acids: aquabis(hydrogen itaconato)barium(II), [Ba(C.H.O.).(OH.).]. J. Chem. Cryst., 29, 785-791 (1999).

23. RM Nair, MR Sudarsanakumar, S Suma, MRP Kurup. Crystal structure and characterization of a novel luminescent 2D metal-organic framework, poly[aquaitaconato calcium(II)] possessing an open framework structure with hydrophobic channels. J. Mol. Struct., 1105, 316-321 (2016).

24. ZY Li, B Zhai, SZ Li, GX Cao, FQ Zhang, XF Zhang, FL Zhang, C Zhang. Two series of lanthanide coordination polymers with 2-methylenesuccinate: Magnetic refrigerant, slow magnetic relaxation, and luminescence properties. Cryst. Growth Des., 16, 4574-4581 (2016).

25. ZY Li, C Zhang, B Zhai, JC Han, MC Pei, JJ Zhang, FL Zhang, SZ Li, GX Cao. Linking heterometallic Cu-Ln chain unit with 2- methylenesuccinate bridge to form 2D network exhibiting large magnetocaloric effect. CrysEngComm, 19, 2702-2810 (2017).

26. JQ Liu, ZD Luo, Y Pan, A Kumar Singh, M Trivedi, A Kumar. Recent developments in luminescent coordination polymers: Designing strategies, sensing application and theoretical evidences, Coord. Chem. Rev., 406, 213145 (2020).

27. GB Deacon,RJ Phillips. Relationships between the carbon- oxygen stretching frequencies of carboxylato complexes and the type of carboxylic coordination. Coord. Chem. Rev., 33, 227- 250 (1980).

28. H Saha, S Mitra. Thermal decomposition reactions of metal carboxylato complexes in the solid state. III. Thermographic and differential thermal studies of metal oxalato, malonato and succinato complexes. Thermochim. Acta, 116, 53-64 (1987).

29. K Patil, G Chandrashekhar, M George, C Rao. Infrared and thermal decompositions of metal acetates and dicarboxylates. Can. J. Chem., 46, 257-265 (1968).

30. G Hussein, D Buttrey, P DeSanto, A Abd-Elgaber, H Roshdy, A Myhoub. Formation and characterization of samarium oxide generated from different precursors. Thermochim. Acta, 402, 27-36 (2003).

31. LJ Rojas, A El-Halah, J Contreras, M Romero, E Rangel, F López-Carrasquero. Estudio preliminar de la copolimerización de acrilamida con el itaconato de mono y dimetoxietilo. Av. Quím., 6, 21-28 (2011).

32. M Monsalve, J Contreras, E Cardozo, RR Contreras. Evaluación de la actividad de complejos de samario (III) con ácido L- aspártico, ácido L-glutámico, glicina y o-fenantrolina, como iniciadores en la polimerización de carbonatos cíclicos. Av. Quím., 10, 129 (2015).

33. CR Groom, IJ Bruno, MP Lightfoot, SC Ward. The Cambridge Structural Database, Acta Cryst., B72, 171-179 (2016).

34. A Boultif, D Louër. Powder pattern indexing with the dichotomy method. J. Appl. Cryst., 37, 724 (2004).

35. A Le Bail. Whole powder pattern decomposition methods and applications: a retrospection. Powder Diffr. 20, 316-326 (2005).

36. J Rodriguez-Carvajal, Fullprof, version 6.3, LLB, CEA-CNRS, France (2019).
