Neurofeedback effects on cognitive performance in children with attention deficit

Efecto del Neurofeedback en el desempeño cognitivo de niños con déficit de atención

Manuel E. Riaño-Garzón m.riano@unisimonbolivar.edu.co

Pontificia Universidad Javeriana, PhD in Psychology (in progress), Professor-researcher Program of Psychology, Universidad Simón Bolívar, Colombia

Edgar Alexis Díaz-Camargo e.diaz@unisimonbolivar.edu.co

Universidad San Buenaventura. PhD in Education (in progress) UPEL-Venezuela. Professor-researcher in Psychology, Universidad Simón Bolívar, Colombia

Javier Leonardo Torrado-Rodríguez j.torrado@unisimonbolivar.edu.co

Universidad San Buenaventura, PhD in Psychology with specialization in cognitive neuroscience - U. Maimónides. Director of the Psychology Program Universidad Simón Bolívar, Colombia

J. Isaac Uribe-Alvarado iuribe@ucol.mx

Universidad Nacional Autónoma de Mexico, full-time Professor, Faculty of Psychology, Universidad de Colima,, México

Julio C. Contreras-Velásquez j.contrerasvelasquez@hotmail.com

Attached to the Research Group on Innovation Management and Entrepreneurship of Universidad Simón Bolívar., Colombia

Carmen Alexandra Fierro-Zarate cafz1994@live.com

Universidad Simón Bolívar, Colombia

Juan Salazar juanjsv18@hotmail.com

University of Zulia, Venezuela

Valmore Bermudez

Universidad Simón Bolívar, Colombia

This work is licensed under Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International.

The Attention Deficit Hyperactivity Disorder (ADHD), is typical of the childhood on which different factors are involved, producing in the child alterations on the attention, impulsivity and motor hyperactivity (Curtis, Clemente, González and Hernández, 2016). Similarly, the American Psychiatric Association (APA, 2013) considers it as a disorder of the neurological development characterized by a persistent pattern of inattention, hyperactivity and impulsiveness that interfere in the normal functioning of the child.

In accordance with Fernandez et al. (2012) the main significant interventions have been stimulants, psycho-social therapy and combined treatments for these approaches; additionally, the author mentions the existence of alternative strategies such as nutritional supplements, relaxation and Neurofeedback (NFB). The drug treatment has been an option with significant results in children and teenagers with ADHD (Rose, Reeves, Gut, & Germak, 2015; Cavadas, Pereira, & Mattos, 2007; Fernández-Mayoralas, Fernández-Perrone, & Fernández-Jaén, 2012); however, NFB emerges as a new non-drug treatment, and preliminary findings indicate a similar improvement in comparison with the drug treatment (Meisel, Aggensteiner, García and Servera, 2012), likewise, Hodgson, Hutchinson & Denson (2014) reported a history of NFB as a therapeutic alternative to reduce the symptoms of ADHD.

NFB is a variant of the Biofeedback, which relies on the use of software and hardware that allows a person to voluntarily control the electrical activation of the body (Frank, Khorshid, Kiffer, Moravec & Mckee, 2010); in this case, it refers specifically to the modification of the electrical activity in the cerebral cortex.

Using the NFB technique a person can get information about any psychophysiological process aiming to learn how to modify this process on a voluntary basis (Riaño, 2012, Evans 2007). Gaviria, Calderón and Barrera (2014) note that NFB seeks through operant conditioning that the patient learns to control the electrical brain activity to increase the desired brainwaves frequency and remove the unwanted. Therefore, it is important to mention that changes of electroencephalographic patterns of attention deficit are modified through voluntary control of brain waves.

According to the characteristics of the attention disorder, Cueli, Rodríguez, García, Areces & González (2015) mention that the treatment should be directed to increase the cortical activity. In accordance with these authors, NFB has been considered like treatment that allows the increment of this activation, not only by the feedback that allows the patient to be aware, to recognize and increase his/her own level of activation, but also to establish new neural pathways. Rodriguez & Criado (2014) consider the NFB as training to patients with ADHD, developed by the individual control of brain waves oriented to increase the beta activity and decrease the theta activity to improve the care processes and the self-control behavioral measures.

Regarding the effectiveness, the results of the studies indicate that the NFB treatment produces improvements in the control of the behavior and in the attention symptoms (Moreno, Delgado, Aires & Meneres 2013; Bernal, 2014; Álvarez, González-Castro, Núñez, González-Pienda & Bernardo, 2007); Likewise, NFB effects have been reported through the increment of the sensorimotor rhythm (SMR) and beta wave (12Hz-16Hz) on the selective attention skills (Mohammadi, Malmir, & Khaleghi, 2015), as well as improvements in auditory attention, phonological awareness (Au, Ho, Choi, Leung, Waye, Kang, & Au, 2014), reaction times (Bakhshayesh, Hansch, Wyschkon, Rezai, & Esser, 2011), attention and memory (Riaño-Garzón & Diaz-Camargo, 2018) and IQ (Leins et al., 2007).

The study on NFB in children is important considering recent reports that indicate that children from Cúcuta-Colombia have inferior results in attention and planning tasks compared to previous studies from other cities in Colombia and Mexico (Riaño, Díaz, Torrado, Salomón, Salón & Raynaud, 2017).

Likewise, it is necessary to explore the non-invasive NFB effects as treatment with empirical support, devoid of training to parents or caregivers as principles of therapy (Loro-López y cols., 2009; Helwig 2011; Rangel 2014), lifestyle modification (Morales Aguilar, Lastre-Amell, & Pardo Vásquez, 2018), no side-effects (Lake, 2010; Valverde e Inchauspe, 2014), improving performance in attentional control tasks and other cognitive process, decreasing ADHD symptoms. Thus, the objective of this research was to analyze the effects of an intervention program through NFB, on the cognitive performance in children with inattention indicators.

Design

A quasi-experimental pretest-posttest study was conducted for analyzing NFB training program effects on the tasks of auditory and visual attention performance. Additionally, memory processes and executive functioning were evaluated, considering theoretical relationship between these processes and the attentional skills (Etchepareborda & Diaz, 2009).

Participants

Minors from six to 14 years old (Boys, n=21 and Girls, n=8) with school reports of attention difficulties, poor academic performance and behavioral problems. By intentional sampling, 18 children from 6 to 9 years old, and 11 young adolescents from 10 to 14 years old (WHO, n.d.) were selected given less than 25 percentile results in attention tests according to Colombian standardization of Child Neuropsychological Evaluation - ENI (Matute, Rosselli, Ardila & Ostrosky, 2013). Participants were were referred by school during the period 2014-2016. Cases with clinical diagnosis other than ADHD and with pharmacological management were excluded. The study was approved by the Bioethics Committee of Simón Bolivar University (act number: C2021770117, January 10^th, 2017).

Procedure

The intervention program was developed in three phases: a) Initial evaluation of attention processes, memory and executive functions. B) Implementation of NFB training protocol and c) Post-intervention assessment.

Instruments

Evaluación Neuropsicológica Infantil - ENI is a Mexican-Colombian standardized test with test-retest reliable in visual attention (r = 0.77-0.88) and reliability among qualifiers of 0.858-0.987 (Matute et al, 2013). The following ENI subtest were used: 1) Visual attention was assessed through “cancelación de letras y dibujos” test. 2) Auditory attention through the task of direct and inverse digit retention. 3) Encoding memory it was evaluated using the learning curve (4 trials / 12 words) and for long-term memory spontaneous word list recovery was used, 4) Cognitive flexibility it was evaluated by card classification subtest and 5) Planning assessment, “Pirámide de México” was used which consists of building designs with blocks counting the number of movements.

Neurofeedback training

The NFB training was done through the Brainmaster 2.5 software and 2EB Clinical system. The electrodes fixed to the scalp at Cz location according to the International 10/20 system with two mastoid electrodes like reference. The NFB protocol was performed under contingencies of auditory and visual reinforcement, aim to low-beta wave increase (12-16 Hz) and theta wave inhibition (4-7 Hz) in a monopolar montage. This training was developed in twenty sessions (two sessions per week, each session lasting 30 minutes). During the montage, participants performed five-minute attentional training activities with Mental Games-Mindplace. software.

Statistical analysis

Qualitative variables were expressed in absolute and relative frequencies. The normality distribution was determined through the Shapiro-Wilk test, concluded there was no normality in data distribution, thus quantitative variables were expressed in medians (Q1-Q3) and nonparametric statistics were used.

Comparison pretest-postest resulted from direct scores analysis in each sub-test of the ENI scale, in groups of children and young adolescents, differences analysis was performed using Wilcoxon test. All analyses were carried out using the SPSS v21.0, statistically significant results were considered when .<0.05.

A total of 29 minors were studied, (Boys, n=21 and Girls, n=8) with age between six to 14 years old. Table 1 shows differences in pretest-posttest cognitive performance, finding statistically significant differences in scores of auditory attention tasks, visual attention, encoding-long-term-memory and planning.

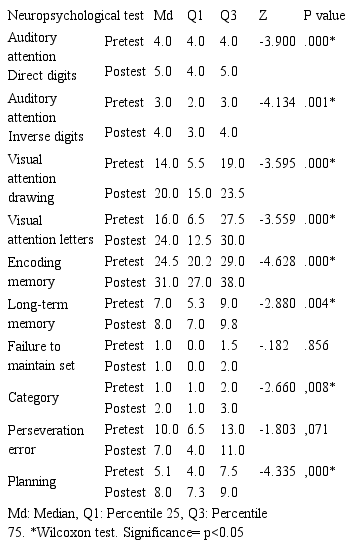

Table 1. Differences in pretest-posttest cognitive performance

Table 1
Differences in pretestposttest cognitive performance

In attention process, increase in the volume of digits retention task were observed. Likewise, in the drawings and letters selection task, errors of omission and commission were decreased while execution speed in task was increased. In words memory tasks, major volume of words recall was observed, both short and long term. Finally, in the planning tasks through designs, to decrease in number of movements for the realization of each model was found (Figure 1).

Figure 1

For the detailed analysis of the increments, direct scores of each subtest of the ENI scale were averaged grouped by age and percentile scores. Finally, the percentile scores were averaged between the groups of age and are presented for each evaluated process (Table 2).

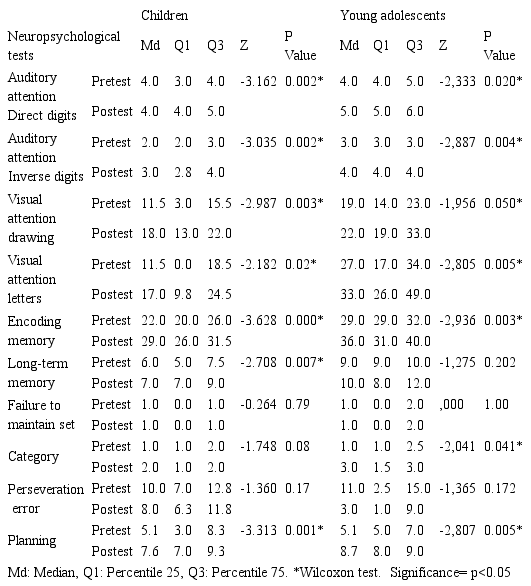

Table 2. Differences in pretest-posttest cognitive performance according to age groups.

Table 2.
Differences in pretest-posttest cognitive performance according to age groups.

A correlational analysis between the auditory attention and memory processes was carried out, pre and posttest analysis, considering that attention is a basic function for the encoding memory and storing of information (Table 3).

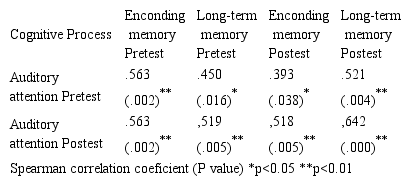

Table 3
Auditory attention and memory spearman correlations

The significant improvements found in auditory and visual attention tasks are consistent with the information reported by Moreno et al. (2013), Bernal (2014), Mohammadi et al. (2015), Gadea, Aliño, Garijo, Espert, & Salvador (2016) and Álvarez et al. (2007), who noted significant statistically changes in attention variables thanks to the interventions with NFB, which in accordance with the approaches stated by Jiménez et al. (2012) allow suggesting an improvement in memory due to the strengthening of voluntary care processes.

The differences found in follow-up attention processes can be explained by changes in theta and beta electrical activity. In first, theta activity maybe consider as neurophysiological markers of the ADHD (Yordanova, Heinrich, Kolev, & Rothenberger, 2006), for example, increased theta showed association between diminished attention test performance (Bink et al., 2015). Also, in children with a diagnosis of ADHD, observing high rates of slow alpha and theta waves in frontal lobes (Meisel et al, 2012; Boutros Fraenkel & Feingold, 2005), while Meier, Perrig, & Koenig (2015), finding excessive beta power at frontal, central and parietal brain lobes in adults with ADHD symptoms.

In this sense, previous findings that have reported a relationship between the increase of 4-7 Hz slow activity (theta waves) with a low blood flow in frontal lobes in ADHD (Gunkleman & Johnston, 2005, Toomin 2002) and low metabolism of the glucose (Gonzalez-Castro, Álvarez, Gonzalez-Pienda, Álvarez, & Muñiz, 2010) which would explain inattention-impulsive component; likewise, the presence of low beta (12-16Hz) brain activity in the central region is called sensory motor rhythm which is related to high voluntary attention capacity and a greater cortical activation (Meisel, Servera, Garcia-Banda, Cardo & Moreno, 2013; Franco, 2006) Likewise, some reports indicate low levels of beta rhythms in cases of attention deficit (Butnik, 2005, Gonzalez-Castro et al., 2010; Bakshsayesh et al., 2011), and others add activation predominance of slow waves in prefrontal regions (Álvarez et al., 2007; Walker, 2010) which from a physiological look would explain the inattention in intervened children as well as those therapeutic effects of the NFB training.

Using the predictive model selected, it was found that the memory processes can be improved as a result of the increment in attention abilities, noting that the attention capacity allows the access to the memory as pointed by Jiménez et al. (2012). This can be explained warning that the memory processes will be favored by storing or encryption strategies, which depend on the maturity in executive functions (Ramírez, Arenas & Henao, 2005; Gomez-Perez, Ostrosky-Solis & Próspero-García, 2003). Additionally, previous studies have pointed out that attention disorders at an old age have shown memory capabilities and reduced impulse control (Valdizan & Izaguerri-García, 2009).

Differences were found in auditory attention specifically in inverse digits task, that is related with working memory, similar finding to Ghaemi & Toozandehjani (2016) report, who showed NFB effects on working memory in children evaluated through digit span task, with an intervention protocol of 20 sessions with synchronization of region Cz, with increase of SMR waves and inhibition of theta waves, as used in this study. Hosseini, Pritchard-Berman, Sosa, Ceja, & Kesler (2016), have also reported improvements in working memory, nevertheless, the authors intervened young adult population, also adding improvements in other functioning executive processes such as inhibitory control and alternating attention.

In relation to long-term memory, in the current research none statistically significant changes were observed, however studies carried out with adults showed NFB effects in this process even with patients with strokes (Kober, Schweiger, Witte, Reichert, Grieshofer, Neuper, & Wood, 2015), it should be noted that NFB training protocols based on Alpha waves protocols have been used to find this effect which is similar to the initial results of Hanslmayr, Sauseng, Doppelmayr, Schabus, & Klimesch (2005).

The cognitive flexibility processes evaluated using the card classification test did not show significant statistically changes, however, when analyzing by groups of age, a greater increase in the number of categories was observed as well as a decrease of repetitive response in the group of young adolescents, which is a consistent finding in relation to the reports of Kouijzer, van Schie, Gerrits, Buitelaar & de Moor (2013), who highlighted NFB effects in the improvement of the cognitive flexibility, the group of age was formed by school students who were from 12 to 18 years old. With the latter, it is possible to expect greater changes in the cognitive flexibility in ages of secondary school students, which is explained by their neurodevelopmental; insofar maturity in these processes has been reported in the age of 12 years old (Cinan, 2006), as well as greater cognitive flexibility between 12 and 16 years old in comparison with other groups of age that were even higher (Hauser, Iannaccone, Walitza, Brandeis, & Brem, 2015). The latter agrees to the findings of Hosseini et al. (2016) who reported improvements in development of flexibility cognitive through NFB training in a sample from 19 to 33 years old. In this sense, a higher impact of the intervention on cognitive flexibility is expected in young adult population.

It is worth mentioning that the changes reported in both the attention processes and the executive functioning allow inferring better self-regulation skills in intervened children.

We concluded that NFB training for therapeutic purposes is effective and efficient to increase indicators of attention, short-term memory, and planning, noting that changes were obtained with an intensity of 20 sessions, classifying it as an effective treatments in the cost-duration perspective. The impact of the increment in the capacities of attention processes should be mentioned from the indirect effects of the program, finding in the study that auditory attention variability predicts 40% of the memory performance. Additionally, it is also noted the relationship with attention, as a basic process that enables the development of the memory-knowledge, even the intelligence.

These results, besides validating the NFB effects in a Colombian border context, should be taken into account as a strategy that used along to other therapies, can enhance the effects getting effectiveness and efficiency to the management of the attention deficit that involves behavioral, contextual and physiological components. The extension of the study using representative samples is expected, including randomization, long term follow-up and comparisons with the control group that would allow classifying this intervention alternative as highly efficient.

Compliance with Ethical Standards and limitations

Conflict of Interest: Authors declare that it has no conflict of interest.

Limitations: We identified some methodological deficiencies, such as the absence of a control group and the sample size which was divided into comparison age group.

Ethical approval: The children and their parents voluntarily accepted the participation of the evaluation and intervention processes as well as the publication of the findings while preserving the confidentiality of their personal data. The well-being of the children was guaranteed, using other intervention procedures in which they are not shown increasing results above the two deviations in the standardized tests. The children were not exposed to risks of any kind. All procedures performed were in accordance with the ethical standards of the Helsinki Declaration and its later amendments or comparable ethical standards. The study was approved by the Bioethics Committee of Simón Bolivar University (act number: C2021770117, January 10th, 2017).

Informed consent: A written informed consent was obtained from children and their parents to participate in the study.
